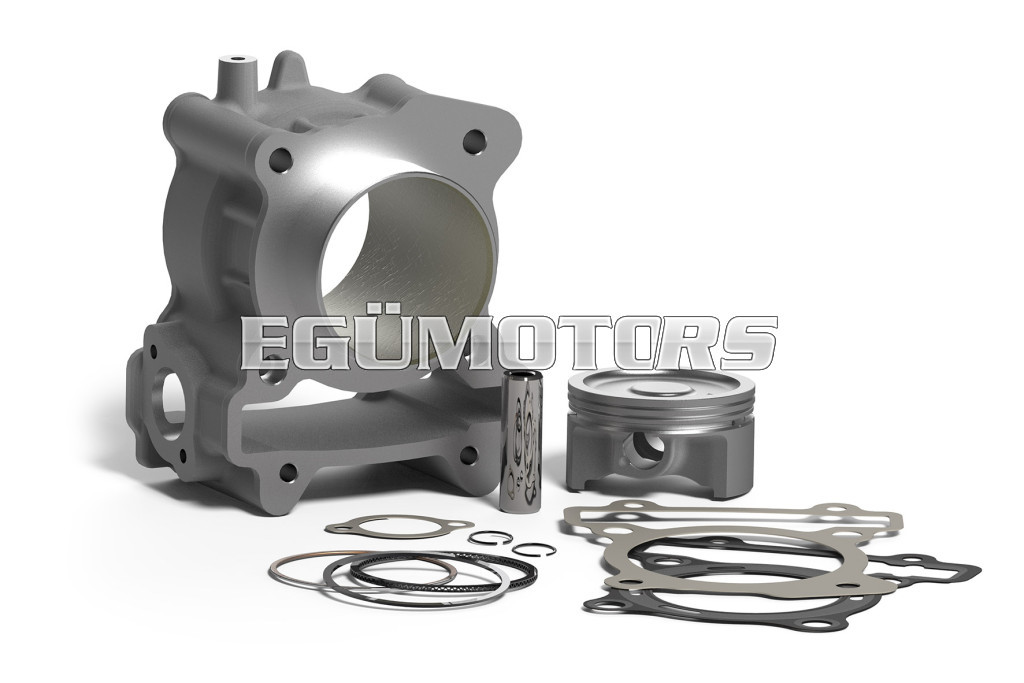

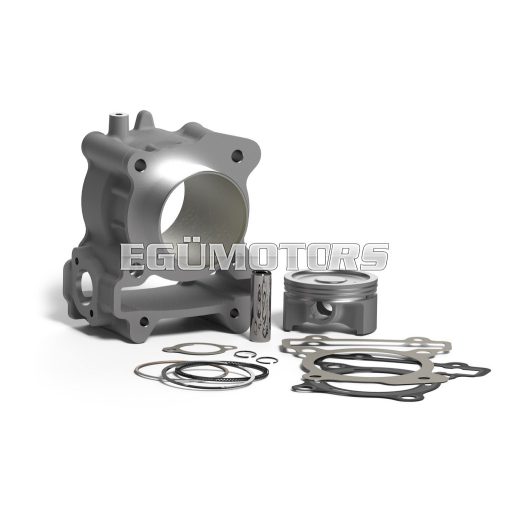

Malossi ALUM-COMPL.CYL. 63 pin 14 H2O I-TECH 4-stroke

TECHNICAL FEATURES

Cylinder

• Bore: Ø 63 mm
• Stroke: 58.7 mm
• Displacement: 183 cc
• Compression ratio: 11.27
• Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances.
• Machining: on machine tools with high precision numerical control.
• Cylinder-piston connection with an allowance of 0.05 mm.
• Recalculated and upgraded heat exchange surfaces.

Piston

• Ultra compact with 3 rings.
• Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.
• Machining on machine tools with numerical control.
• Lightened and reinforced.
• Upgraded heat exchange surfaces.

Piston rings

• Special rings with high sliding ease and very high mechanical resistance.
• I° ring compression in nitrided and chromium steel.
• II° special cast iron ring.
• Three piece scraper ring made of chromium-plated special steel alloy.

To be installed exclusively with Force Master 2.1 control unit 5519931
YAMAHA N MAX 155 ie 4T LC euro 4 <-2016
YAMAHA N MAX 155 ie 4T LC euro 4 2017->
YAMAHA N MAX 155 ie 4T LC euro 5 2023->(G3N9E)
YAMAHA NVX 155 ie 4T LC euro 4 2017->
YAMAHA TRICITY 155 ie 4T LC euro 4 2017-> (G3H3E)
YAMAHA TRICITY 155 ie 4T LC euro 5 2022-> (G3T3E)

To be installed exclusively with Force Master 2.1 control unit 5519751
YAMAHA YZF-R 125 ie 4T LC euro 4 2019->2020

To be installed exclusively with Force Master 2.1 control unit 5519888
YAMAHA MT- 125 ie 4T LC euro 5 2021-> (E32FE)
YAMAHA XSR 125 ie 4T LC euro 5 2022->
YAMAHA YZF-R 125 ie 4T LC euro 5 2021-> (E34LE)

To be installed exclusively with Force Master 2.1 control unit 5519527
YAMAHA N MAX 125 ie 4T LC euro 5 2021->2024 (E32TE)
YAMAHA X MAX 125 ie 4T LC euro 5 2021->2022 (E33FE)
YAMAHA X MAX 125 ie 4T LC euro 5 2023->2024
YAMAHA TRICITY 125 ie 4T LC euro 5 2023-> (E34AE)

To be installed exclusively with Force Master 2.1 control unit 5519747
BETA RR ENDURO 125 4T LC euro 5 2021-> (B5G00)
BETA RR ENDURO 125 T 4T LC euro 5 2021-> (B5G00)
BETA RR MOTARD 125 4T LC euro 5 2021-> (B5G00)
BETA RR MOTARD R 125 4T LC euro 5 2021-> (B5G00)
BETA RR MOTARD T 125 4T LC euro 5 2021-> (B5G00)
FANTIC CABALLERO DELUXE 125 ie 4T LC euro 5 2021->
FANTIC CABALLERO FLAT TRACK 125 ie 4T LC euro 5 2021->
FANTIC CABALLERO SCRAMBLER 125 ie 4T LC euro 5 2021->
FANTIC ENDURO XEF COMPETITION 125 ie 4T LC euro 5 2021->
FANTICENDURO XEF PERFORMANCE 125 ie 4T LC euro 5 2021->
FANTIC MOTARD XMF COMPETITION 125 ie 4T LC euro 5 2021->2024
FANTIC MOTARD XMF COMPETITION 125 ie 4T LC euro 5+ 2025->(WR5)
FANTIC MOTARD XMF PERFORMANCE 125 ie 4T LC euro 5 2021->
FANTIC MOTARD XMF PERFORMANCE 125 ie 4T LC euro 5+ 2025->(WR5)

Modellek:

• FANTIC CABALLERO DELUXE 125 ie 4T LC euro 5 2021-> (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519747)
• FANTIC CABALLERO FLAT TRACK 125 ie 4T LC euro 5 2021-> (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519747)
• FANTIC CABALLERO SCRAMBLER 125 ie 4T LC euro 5 2021-> (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519747)
• FANTIC ENDURO XEF COMPETITION 125 ie 4T LC euro 5 2021-> (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519747)
• FANTIC ENDURO XEF PERFORMANCE 125 ie 4T LC euro 5 2021-> (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519747)
• FANTIC MOTARD XMF COMPETITION 125 ie 4T LC euro 5 2021->2024 (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519747)
• FANTIC MOTARD XMF PERFORMANCE 125 ie 4T LC euro 5 2021->2024 (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519747)
• YAMAHA BW'S 125 ie 4T LC euro 4 2019->
• YAMAHA CYGNUS GRYPHUS 125 ie 4T LC euro 4 2019->
• YAMAHA MT- 125 ie 4T LC euro 5 2021-> (E32FE) (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519888)
• YAMAHA N MAX 125 ie 4T LC euro 3 <-2016 (E3S3E) (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519448)
• YAMAHA N MAX 125 ie 4T LC euro 4 2017->2020 (E3X7E) (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519448)
• YAMAHA N MAX 125 ie 4T LC euro 5 2021->2024 (E32TE) (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519527)
• YAMAHA N MAX 155 ie 4T LC euro 3 <-2016 (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519931)
• YAMAHA N MAX 155 ie 4T LC euro 4 2017-> (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519931)
• YAMAHA NVX 155 ie 4T LC euro 4 2017-> (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519931)
• YAMAHA TRICITY 155 ie 4T LC euro 4 2017-> (G3H3E) (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519931)
• YAMAHA X MAX 125 ie 4T LC euro 5 2021->2022 (E33FE) (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519527)
• YAMAHA XSR 125 ie 4T LC euro 5 2022-> (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519888)
• YAMAHA YZF-R 125 ie 4T LC euro 5 2021-> (E34LE) (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519888)
• YAMAHA YZF-R 125 ie 4T LC euro 4 2019->2020 (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519751)
• YAMAHA N MAX 155 ie 4T LC euro 5 2023-> (G3N9E) (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519931)
• YAMAHA TRICITY 155 ie 4T LC euro 5 2022-> (G3T3E) (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519931)
• BETA RR ENDURO 125 ie 4T LC euro 5 2021-> (B5G00) (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519747)
• BETA RR MOTARD 125 ie 4T LC euro 5 2021-> (B5G00) (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519747)
• BETA RR MOTARD R 125 ie 4T LC euro 5 2021-> (B5G00) (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519747)
• BETA RR ENDURO T 125 ie 4T LC euro 5 2021-> (B5G00) (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519747)
• YAMAHA TRICITY 125 ie 4T LC euro 5 2023-> (E34AE) (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519527)
• YAMAHA X MAX 125 ie 4T LC euro 5 2023->2024 (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519527)
• FANTIC MOTARD XMF PERFORMANCE 125 ie 4T LC euro 5+ 2025-> (WR5) (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519747)
• FANTIC MOTARD XMF COMPETITION 125 ie 4T LC euro 5+ 2025-> (WR5) (ATTENTION : To be installed EXCLUSIVELY with Force Master 2.1 control unit art. 5519747)
