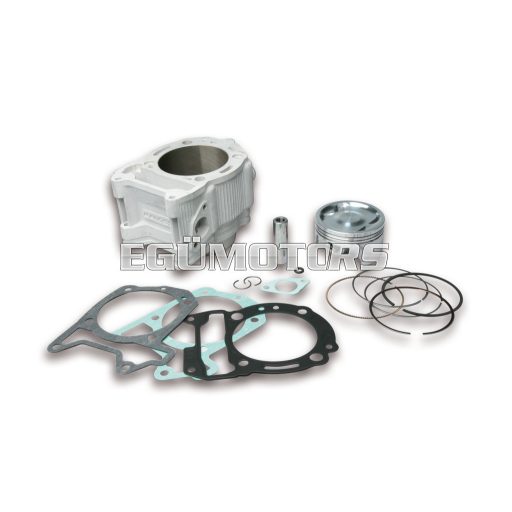

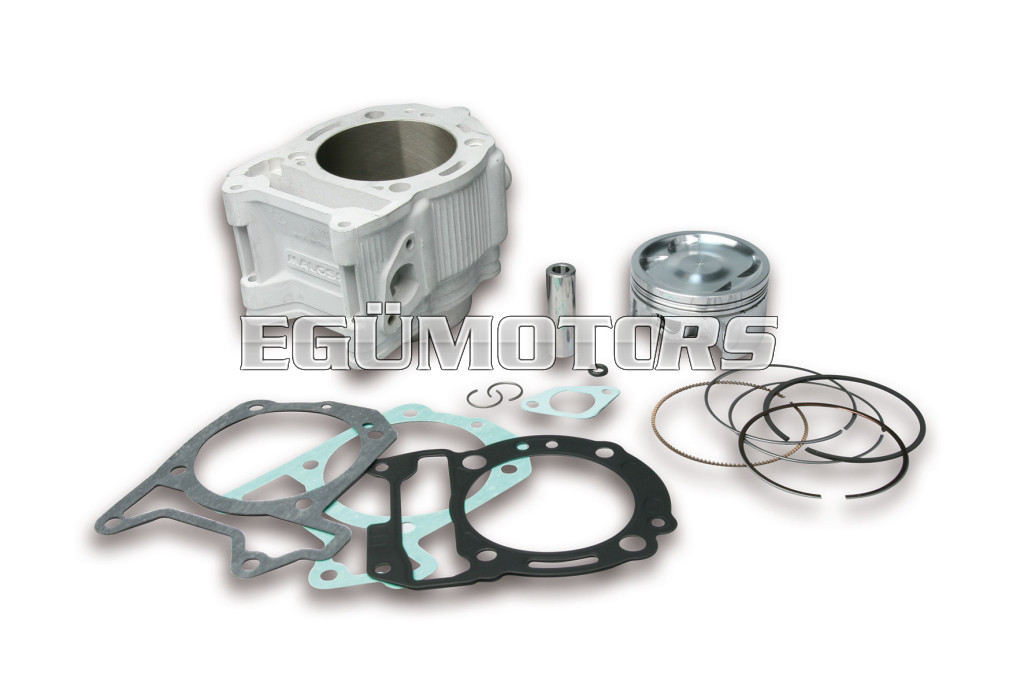

Aluminium complete cylinder I-TECH 4 Stroke
Ø 75,5 pin Ø 16 H2O
Cylinder
- Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances
- Machining: on machine tools with high precision numerical control
- Cylinder-piston connection with an allowance of 0.05 mm
- Recalculated and upgraded heat exchange surfaces
Piston
- Ultra compact with 3 rings
- Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces
- Machining on machine tools with numerical control
- Lightened and reinforced
- Upgraded heat exchange surfaces
Piston rings
- Special rings with high sliding ease and very high mechanical resistance
- I° ring compression in nitrided and chromium steel
- II° special cast iron ring
- Three piece scraper ring made of chromiumplated special steel alloy
Modellek:
- PIAGGIO BEVERLY HPE 300 ie 4T LC euro 5 2021-> (MD21M)
- PIAGGIO MP3 HPE Sport 300 ie 4T LC euro 5 2021-> (TD21M)
- PIAGGIO MP3 HPE 300 ie 4T LC euro 5 2021-> (TD21M)
- VESPA GTS Super RACING SIXTIES HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
- VESPA GTS Super HPE 300 ie 4T LC euro 4 2019->2020 (MA36M)
- VESPA GTS Super HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
- VESPA GTS Super Sport HPE 300 ie 4T LC euro 4 2019->2020 (MA36M)
- VESPA GTS Super Sport HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
- VESPA GTS Super Tech HPE 300 ie 4T LC euro 4 2019->2020 (MA36M)
- VESPA GTS Super Tech HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
- VESPA GTS Touring HPE 300 ie 4T LC euro 4 2019->2020 (MA36M)
- VESPA GTS Touring HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
- VESPA SEI GIORNI HPE 300 ie 4T LC euro 4 2019->2020 (MA36M)
- VESPA SEI GIORNI HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
- VESPA SEI GIORNI II EDITION HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
- VESPA GTS HPE 300 ie 4T LC euro 4 2019->2020 (MA36M)
- VESPA GTS HPE 300 ie 4T LC euro 5 2021->2022 (MD31M)
- VESPA GTS HPE 300 ie 4T LC euro 5 2023-> (MD31M)
- VESPA GTS Super HPE 300 ie 4T LC euro 5 2023-> (MD31M)
- VESPA GTS Super Sport HPE 300 ie 4T LC euro 5 2023->
- VESPA GTS Super Tech HPE 300 ie 4T LC euro 5 2023->
- VESPA GTV HPE 300 ie 4T LC euro 5 2023->
