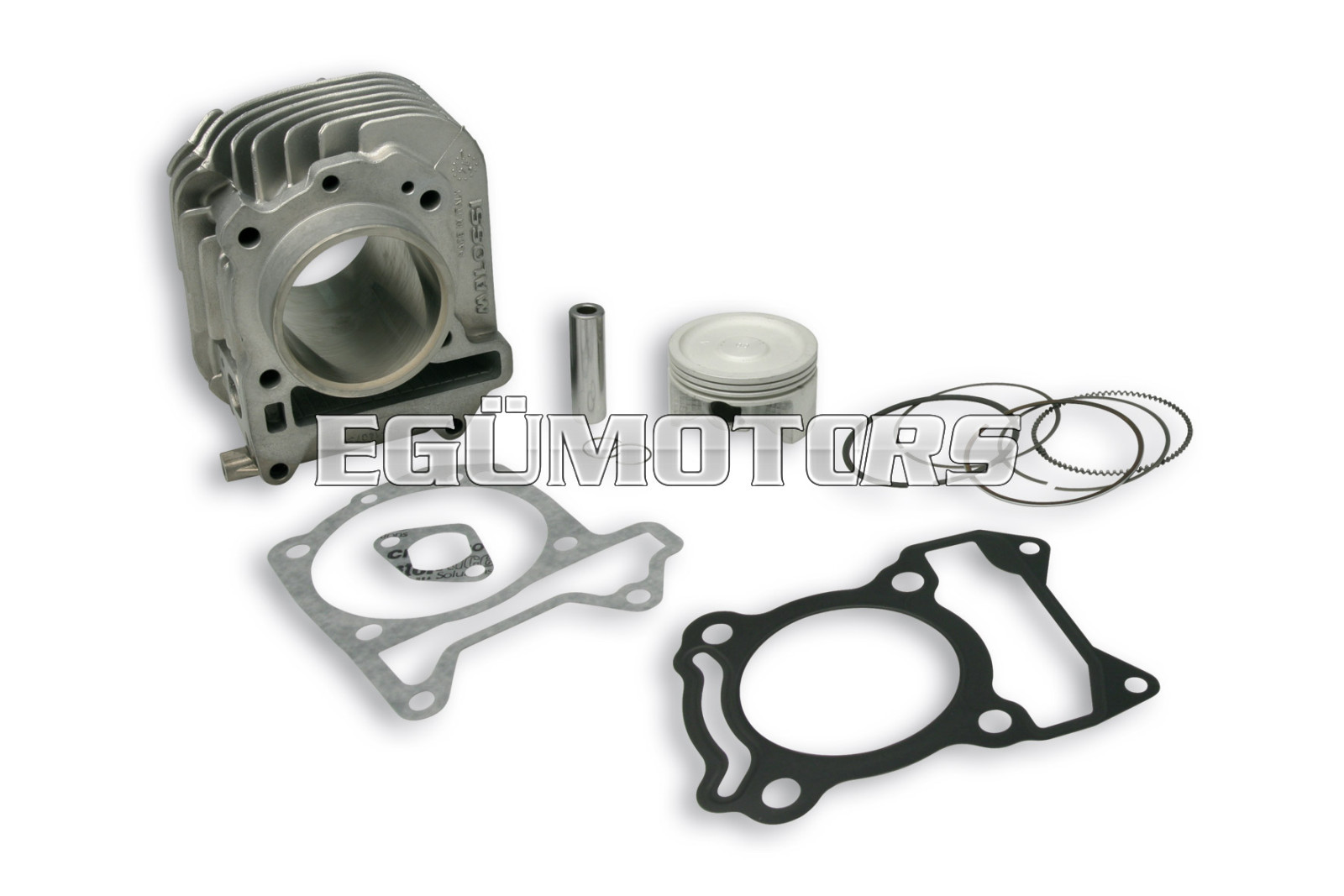

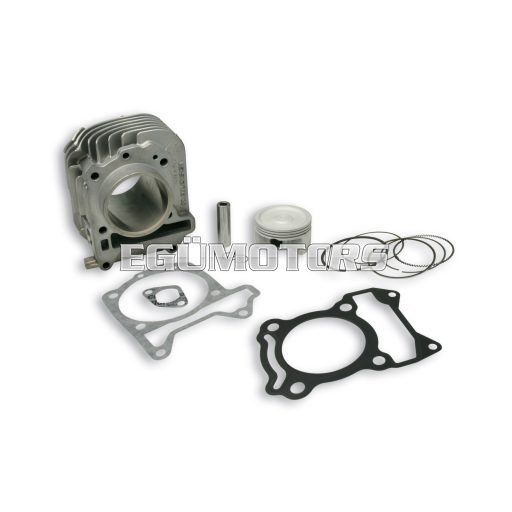

TECHNICAL FEATURES
Cylinder
- Bore: Ø 63 mm
- Stroke: 58.6 mm
- Displacement: 182.67 cc
- Compression ratio: 11.15:1
- Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances.
- Machining: on machine tools with high precision numerical control.
- Cylinder-piston connection with an allowance of 0.05 mm.
- Recalculated and upgraded heat exchange surfaces.
Piston
- Ultra compact with 3 rings.
- Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.
- Machining on machine tools with numerical control.
- Lightened and reinforced.
- Upgraded heat exchange surfaces.
Piston rings
- Special rings with high sliding ease and very high mechanical resistance.
- I° ring compression in nitrided and chromium steel.
- II° special cast iron ring.
- Three - piece scraper ring made of chromium-plated special steel alloy.
To be installed exclusively with Force Master 2 control unit 5516549
PIAGGIO LIBERTY 3V 125 ie 4T euro 3
PIAGGIO LIBERTY 3V 150 ie 4T euro 3 (M738M)
VESPA LX 3V 125 ie 4T euro 3 2012-> (M687M)
VESPA LX 3V 150 ie 4T euro 3 2012-> (M688M)
VESPA Primavera 3V 125 ie 4T euro 3 2014-> (M811M)
VESPA Primavera 3V 150 ie 4T euro 3 2014-> (M812M)
VESPA Sprint 3V 125 ie 4T euro 3 2014->2015
VESPA Sprint 3V 150 ie 4T euro 3 2014->
To be installed exclusively with Force Master 2.1 control unit 5517350
PIAGGIO LIBERTY iGet ABS 125 ie 4T euro 3 (M893M)
PIAGGIO LIBERTY iGet 125 ie 4T euro 4 2017->2020
PIAGGIO LIBERTY iGet ABS 150 ie 4T euro 3
PIAGGIO LIBERTY iGet 150 ie 4T euro 4 2017->2020
PIAGGIO LIBERTY S iGet 125 ie 4T euro 4 2017->2020
PIAGGIO LIBERTY S iGet 150 ie 4T euro 4 2017->2020
VESPA Primavera iGet 125 ie 4T euro 4 2016->2020
VESPA Primavera iGet 150 ie 4T euro 4 2016->2020
VESPA Sprint iGet 125 ie 4T euro 4 2016->2020 (MA13M)
VESPA Sprint iGet 150 ie 4T euro 4 2016->2020
To be installed exclusively with Force Master 2.1 control unit 5519025
PIAGGIO LIBERTY iGet 125 ie 4T euro 5 2021-> (MD41M)
PIAGGIO LIBERTY S iGet 125 ie 4T euro 5 2021-> (MD41M)
PIAGGIO LIBERTY iGet 150 ie 4T euro 5 2021-> (MD42M)
PIAGGIO LIBERTY S iGet 150 ie 4T euro 5 2021-> (M546M)
VESPA Primavera iGet 125 ie 4T euro 5 2021-> (MD11M)
VESPA Primavera iGet 150 ie 4T euro 5 2021->
VESPA Sprint iGet 125 ie 4T euro 5 2021-> (MD11M)
VESPA Sprint iGet 150 ie 4T euro 5 2021->
Modellek:
- PIAGGIO LIBERTY iGet 125 ie 4T euro 5 2021->2024 (MD41M) (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519025)
- PIAGGIO LIBERTY 3V 125 ie 4T euro 3 (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5516549)
- PIAGGIO LIBERTY iGet ABS 125 ie 4T euro 3 (M893M) (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5517350)
- PIAGGIO LIBERTY iGet 125 ie 4T euro 4 2017->2020 (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5517350)
- PIAGGIO LIBERTY S iGet 125 ie 4T euro 5 2021->2024 (MD41M) (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519025)
- PIAGGIO LIBERTY 3V 150 ie 4T euro 3 (M738M) (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5516549)
- PIAGGIO LIBERTY iGet ABS 150 ie 4T euro 3 (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5517350)
- PIAGGIO LIBERTY iGet 150 ie 4T euro 4 2017->2020 (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5517350)
- PIAGGIO LIBERTY iGet 150 ie 4T euro 5 2021->2024 (MD42M) (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519025)
- PIAGGIO LIBERTY S iGet 125 ie 4T euro 4 2017->2020 (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5517350)
- PIAGGIO LIBERTY S iGet 150 ie 4T euro 4 2017->2020 (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5517350)
- PIAGGIO LIBERTY S iGet 150 ie 4T euro 5 2021->2024 (MD42M) (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519025)
- VESPA LX 3V 125 ie 4T euro 3 2012-> (M687M) (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5516549)
- VESPA LX 3V 150 ie 4T euro 3 2012-> (M688M) (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5516549)
- VESPA Primavera 3V 125 ie 4T euro 3 2014->2015 (M811M) (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5516549)
- VESPA Primavera iGet 125 ie 4T euro 4 2016->2020 (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5517350)
- VESPA Primavera iGet 125 ie 4T euro 5 2021->2023 (MD11M) (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519025)
- VESPA Primavera 3V 150 ie 4T euro 3 2014->2015 (M812M) (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5516549)
- VESPA Primavera iGet 150 ie 4T euro 4 2016->2020 (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5517350)
- VESPA Primavera iGet 150 ie 4T euro 5 2021->2023 (MD12M) (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519025)
- VESPA Sprint 3V 125 ie 4T euro 3 2014->2015 (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5516549)
- VESPA Sprint iGet 125 ie 4T euro 4 2016->2020 (MA13M) (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5517350)
- VESPA Sprint iGet 125 ie 4T euro 5 2021->2023 (MD11M) (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519025)
- VESPA Sprint 3V 150 ie 4T euro 3 2014-> (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5516549)
- VESPA Sprint iGet 150 ie 4T euro 4 2016->2020 (ATTENTION : To be installed exclusively with Force Master 2 control unit art. 5517350)
- VESPA Sprint iGet 150 ie 4T euro 5 2021->2023 (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519025)
