Technical features

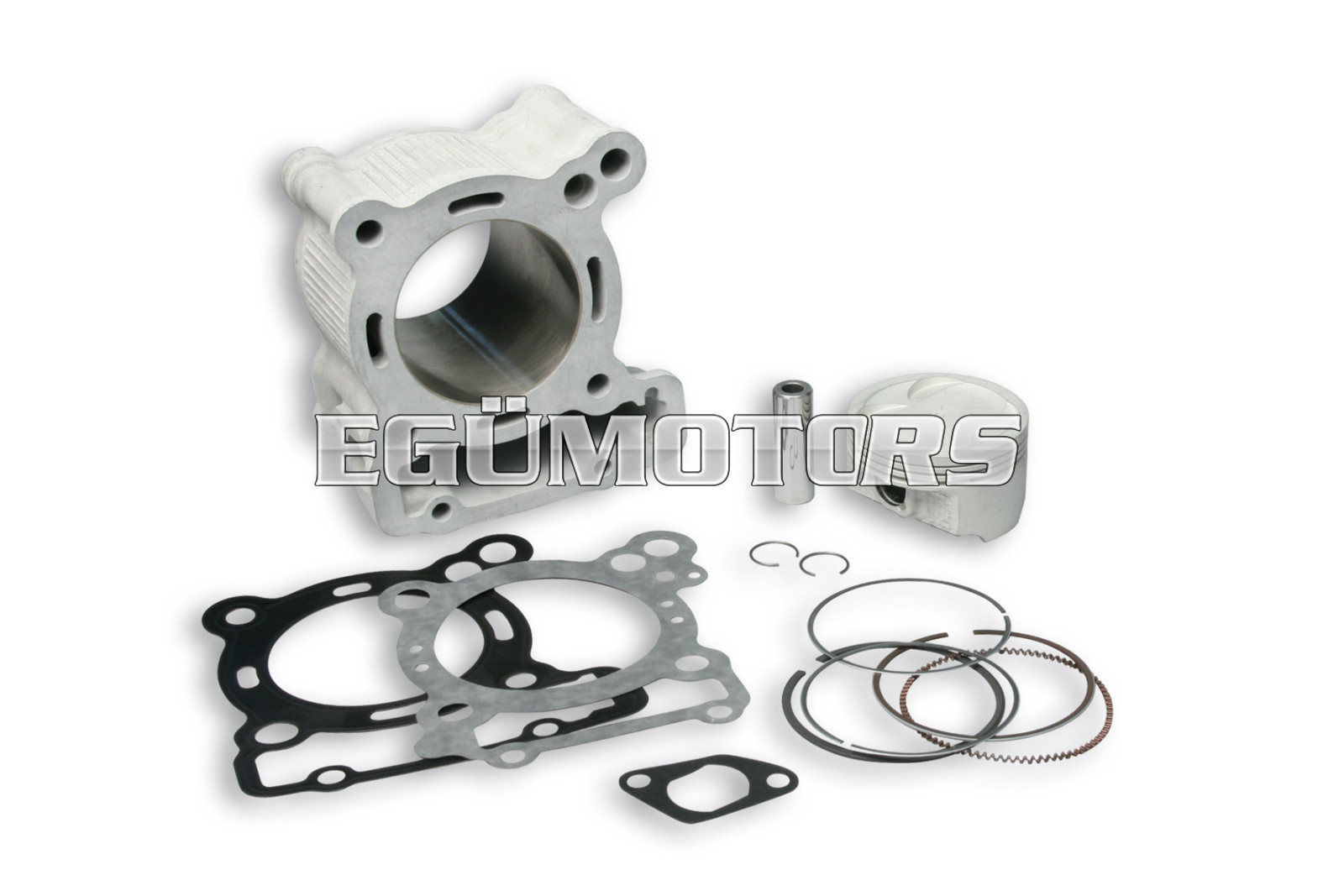

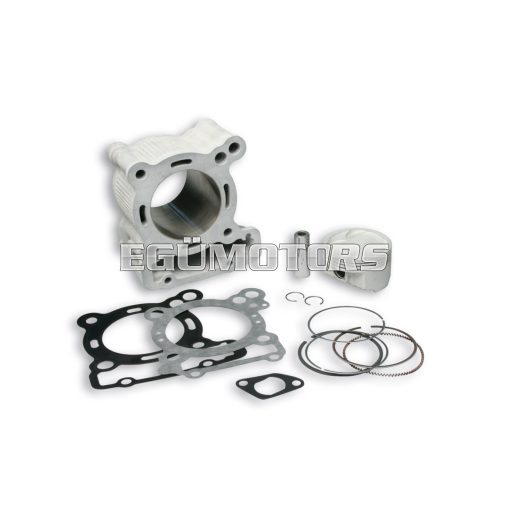

Cylinder
- 125 cc:
- Bore: Ø 67 mm
- Stroke: 47 mm
- Displacement: 166
- 200 cc:
- Bore: Ø 67 mm
- Stroke: 58 mm
- Displacement: 200
- Compression ratio: 12:1
- Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances.
- Machining: on machine tools with high precision numerical control.
- Cylinder-piston connection with an allowance of 0.05 mm.
- Recalculated and upgraded heat exchange surfaces.
Piston
- Ultra compact with 3 rings.
- Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.
- Machining on machine tools with numerical control.
- Lightened and reinforced.
- Upgraded heat exchange surfaces.
Piston rings
- Special rings with high sliding ease and very high mechanical resistance.
- I° ring compression in nitrided and chromium steel.
- II° special cast iron ring.
- Three - piece scraper ring made of chromium-plated special steel alloy.
To be installed exclusively with Force Master 2.1 control unit 5519412
APRILIA SRS 125 ie 4T LC euro 5 2021->
APRILIA RS GP Replica 125 ie 4T LC euro 5 2021->
APRILIA RX 125 ie 4T LC euro 5 2021->
APRILIA SX 125 ie 4T LC euro 5 2021-> (M546M)
APRILIA TUONO 125 ie 4T LC euro 5 2021->
To be installed exclusively with Force Master 2.1 control unit 5519542
APRILIA RS4 125 ie 4T LC euro 3
APRILIA SRS 125 ie 4T LC euro 4 2019->2020 (M545M)
APRILIA RS GP Replica 125 ie 4T LC 4 2019->2020
APRILIA RX 125 ie 4T LC euro 4 2019->2020
APRILIASX 125 ie 4T LC euro 4 2018->2020 (M546M)
APRILIA TUONO 125 ie 4T LC euro 4 2019->2020)
DERBI Senda DRD 4V R - SM 125 ie 4T LC euro 3
To be installed exclusively with Force Master 2.1 control unit 5519437
ITALJET DRAGSTER 125 4T LC euro 5 2021-> (JC1P 58 MI-3)
To be installed exclusively with Force Master 2.1 control unit 5519720
ITALJET DRAGSTER 200 4T LC euro 5 2021-> (JC1P63ML-4B)
Modellek:
- APRILIA RS4 125 ie 4T LC euro 3 (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519542)
- APRILIA RS 125 ie 4T LC euro 4 2019->2020 (M545M) (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519542)
- APRILIA RS 125 ie 4T LC euro 5 2021->2024 (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519412)
- APRILIA RS GP Replica 125 ie 4T LC euro 4 2019->2020 (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519542)
- APRILIA RS GP Replica 125 ie 4T LC euro 5 2021->2024 (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519412)
- APRILIA RX 125 ie 4T LC euro 4 2019->2020 (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519542)
- APRILIA RX 125 ie 4T LC euro 5 2021->2024 (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519412)
- APRILIA SX 125 ie 4T LC euro 4 2018->2020 (M545M) (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519542)
- APRILIA SX 125 ie 4T LC euro 5 2021->2024 (M546M) (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519412)
- APRILIA TUONO 125 ie 4T LC euro 4 2019->2020 (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519542)
- APRILIA TUONO 125 ie 4T LC euro 5 2021->2024 (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519412)
- DERBI Senda DRD 4V R - SM 125 ie 4T LC euro 3 (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519542)
- DERBI GPR 4V 125 4T LC euro 3
- DERBI MULHACÉN CAFE 4V 125 4T LC euro 3
- DERBI TERRA - TERRA Adventure 4V 125 4T LC euro 3
- ITALJET DRAGSTER 125 ie 4T LC euro 5 2021-> (JC1P58MI-3) (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519437)
- ITALJET DRAGSTER 200 4T LC euro 5 2021-> (JC1P63ML-4B) (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519720)
- ROYAL ALLOY GP 200 LC
- SCOMADI TT 200 LC
- RIEJU CENTURY 125 ie 4T LC euro 5 2020->2024 (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519542)
