Malossi ALUMIN-CYLINDER 52 pin 13 4-stroke

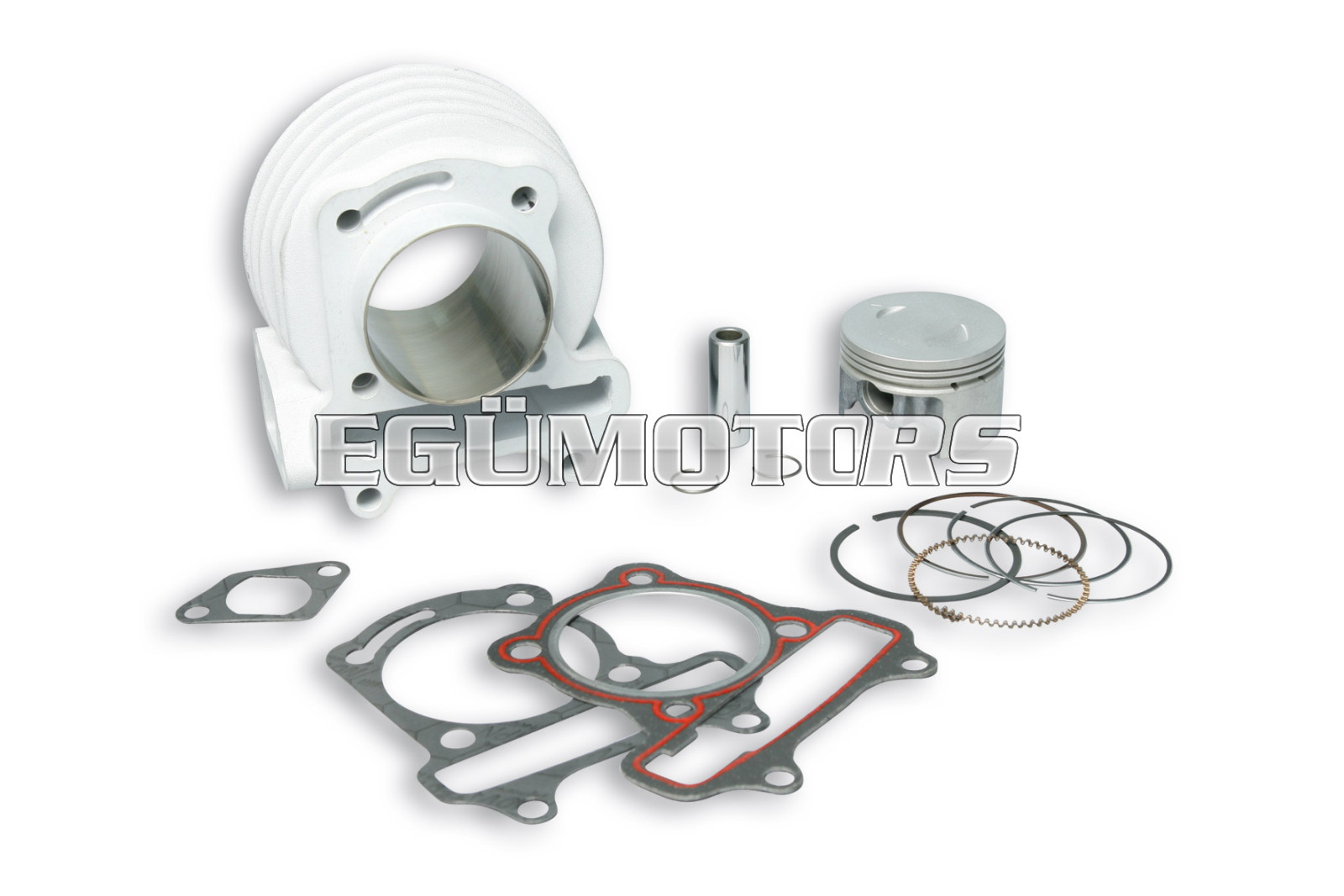

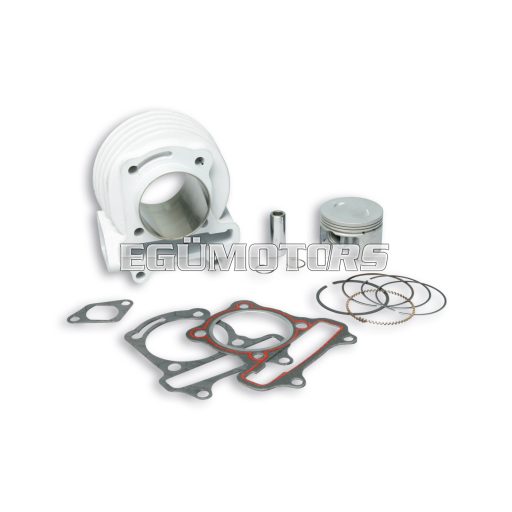

COMPLETE CYLINDER 4-STROKE

TECHNICAL FEATURES

Cylinder

• Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances.
• Machining: on machine tools with high precision numerical control.
• Cylinder-piston connection with an allowance of 0.05 mm.
• Recalculated and upgraded heat exchange surfaces.

Piston

• Ultra compact with 3 rings.
• Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.
• Machining on machine tools with numerical control.
• Lightened and reinforced.
• Upgraded heat exchange surfaces.

Piston rings

• Compression - special rings with high sliding ease and very high mechanical resistance, in chromium-plated S10 spheroidal cast-iron.
• 1st scraper - ring in chromium-plated S10 spheroidal cast iron.
• 2nd three - piece scraper ring made of chromium-plated steel alloy.

Modellek:

• BAOTIAN ECO BIKE 50 4T (139 QMB)
• BAOTIAN REBEL - ROCKY - TANCO 9/12 50 4T
• GARELLI FLEXI' 50 4T euro 2 (1P139 QMB)
• GARELLI TIESSE FOUR 50 4T euro 2 (1P39QMB)
• HUPPER MONTECARLO 30 50 4T (139QMB)
• KYMCO AGILITY R16 - RS 50 4T euro 2 (KL10B)
• KYMCO AGILITY R10/12 - RS 50 4T euro 2 (KL10B)
• KYMCO AGILITY R16 + 50 4T euro 2 2017-> (KL10C)
• KYMCO DINK 50 4T euro 2
• KYMCO LIKE 50 4T euro 2 (KG10A)
• KYMCO PEOPLE 50 4T euro 2
• KYMCO PEOPLE S 50 4T euro 2 (BB10)
• KYMCO SENTO 50 4T euro 2
• KYMCO SUPER 8 50 4T euro 2 (KL10)
• KYMCO VITALITY 50 4T euro 2 (SG10)
• MALAGUTI DVD 50 4T (139 QMB)
• PEUGEOT V-CLIC 50 4T (Crankcase MODIFICATIONS : BORING AND CHAMFERING)
• SYM SYMPLY 50 4T euro 2 (XS1P39QMB) (Crankcase MODIFICATIONS : BORING AND CHAMFERING)
• WT MOTORS BILBAO 50 4T (PEDA 139QMB)
