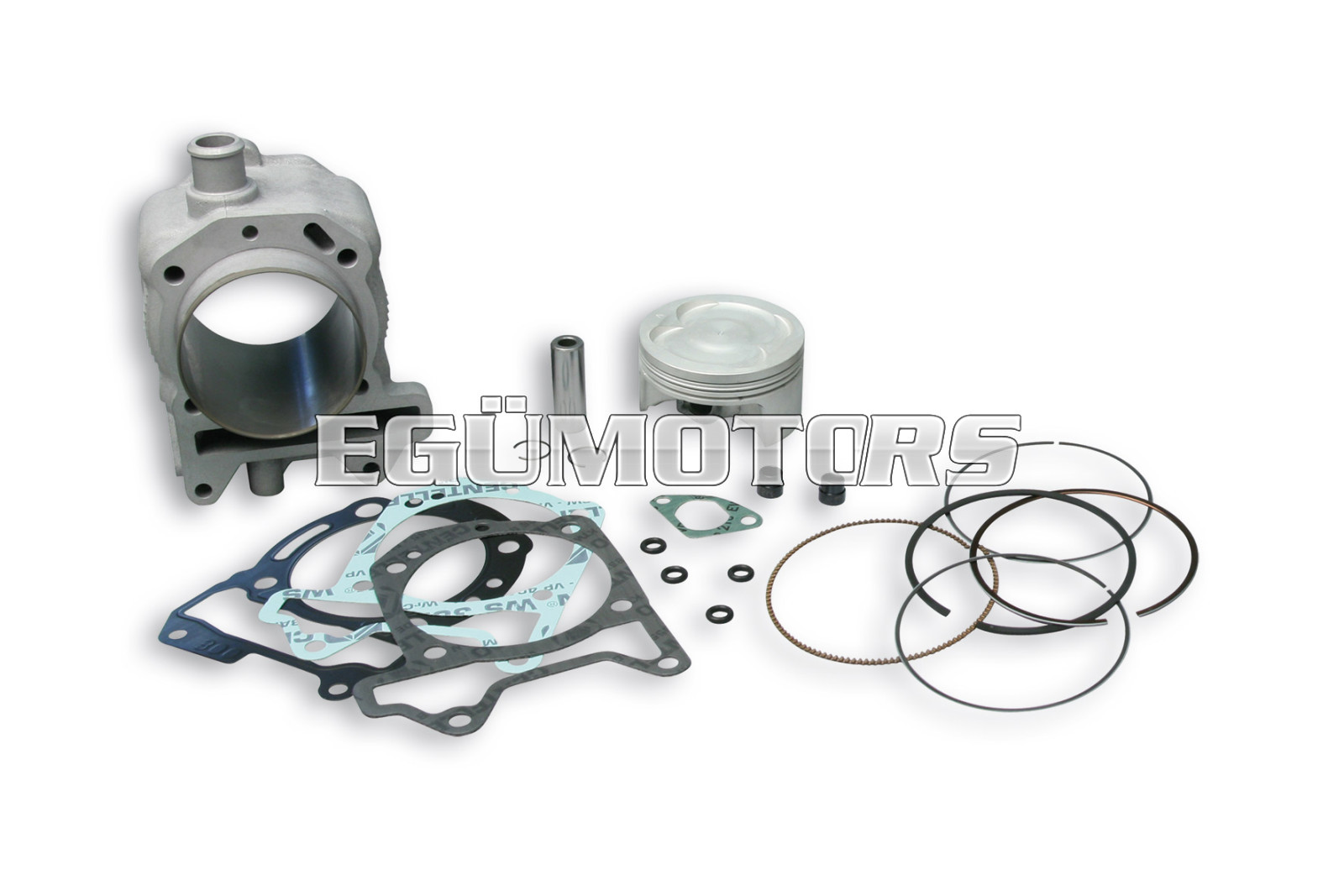

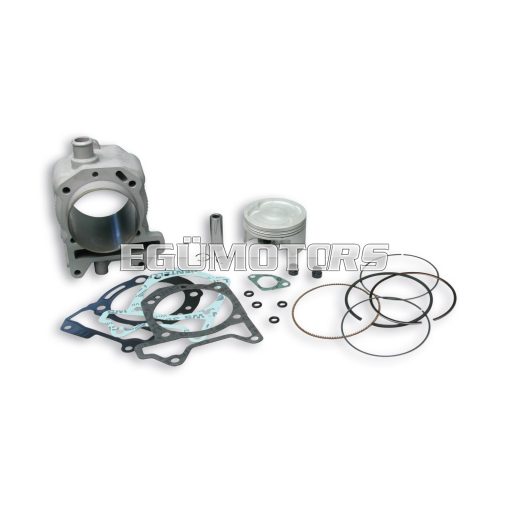

Malossi ALUMIN-CYLINDER 75,5 H2O SCOOTER 125>2004-stroke

TECHNICAL SPECIFICATIONS

Cylinder

• Bore Ø 75.5 mm;
• Stroke 48,6 mm;
• Displacement 218;
• Compression ratio 12.5:1.
• Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances.
• Machining: on machine tools with high precision numerical control.
• Cylinder-piston connection with an allowance of 0.05 mm.
• Recalculated and upgraded heat exchange surfaces.

Piston

• Ultra compact with 3 rings.
• Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.
• Machining on machine tools with numerical control.
• Lightened and reinforced.
• Upgraded heat exchange surfaces.

Piston rings

• Special rings with high sliding ease and very high mechanical resistance.
• I° ring compression in nitrided and chromium steel.
• II° special cast iron ring.
• Three - piece scraper ring made of chromiumplated specialsteel alloy.

Modellek:

• APRILIA ATLANTIC - Arrecife 125 4T LC
• APRILIA ATLANTIC - Arrecife 200 4T LC (PIAGGIO M234M)
• APRILIA SCARABEO 125 4T LC (PIAGGIO)
• APRILIA SPORTCITY 125 4T LC euro 2 (PIAGGIO M281M)
• APRILIA SPORTCITY 200 4T LC euro 3 (PIAGGIO)
• APRILIA SR MAX 125 ie 4T LC euro 3 2011->2014 (M357M) (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519811)
• DERBI GP1 125 4T LC euro 2-3
• DERBI RAMBLA 125 4T LC euro 3 (PIAGGIO M287M)
• GILERA DNA 125 4T LC
• GILERA DNA 180 4T LC
• GILERA NEXUS 125 4T LC euro 3 2007->2008 (M355M)
• GILERA NEXUS 125 ie 4T LC euro 3 2008->2010 (M357M) (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519811)
• GILERA RUNNER ST 125 4T LC euro 3
• GILERA RUNNER ST 200 4T LC euro 3
• GILERA RUNNER VX 125 4T LC 2006->
• GILERA RUNNER VX 125 4T LC <-2005
• GILERA RUNNER VXR 180 4T LC
• GILERA RUNNER VXR 200 4T LC <-2005
• GILERA RUNNER VXR 200 4T LC 2006->
• MALAGUTI PHANTOM MAX 200 4T LC (PIAGGIO)
• MALAGUTI MADISON 180 4T LC (PIAGGIO)
• MALAGUTI MADISON 200 4T LC (PIAGGIO)
• MALAGUTI MADISON 3 125 4T LC (PIAGGIO)
• PIAGGIO BEVERLY 125 4T LC <-2009
• PIAGGIO BEVERLY 125 ie 4T LC euro 3 2010->2015 (QUASAR M691M) (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519811)
• PIAGGIO BEVERLY 200 4T LC
• PIAGGIO CARNABY 125 4T LC euro 3 (LEADER M28FM)
• PIAGGIO CARNABY 200 4T LC euro 3 (LEADER M601M)
• PIAGGIO SUPER HEXAGON GTX 125 4T LC
• PIAGGIO SUPER HEXAGON GTX 180 4T LC
• PIAGGIO MP3 125 4T LC euro 3 (LEADER)
• PIAGGIO MP3 YOURBAN 4V 125 ie 4T LC euro 3 2011->2013 (M711M) (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519811)
• PIAGGIO X7 125 4T LC euro 3 (LEADER)
• PIAGGIO X7 EVO 125 ie 4T LC euro 3 2009->2010 (QUASAR M623M) (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519811)
• PIAGGIO X8 125 4T LC euro 2-3 (LEADER)
• PIAGGIO X8 200 4T LC
• PIAGGIO X9 4V 125 4T LC
• PIAGGIO X9 4V Evolution 125 4T LC euro 2-3
• PIAGGIO X9 AMALFI 180 4T LC
• PIAGGIO X9 200 4T LC
• PIAGGIO XEvo 125 4T LC euro 3 (LEADER)
• VESPA Granturismo L - GT 125 4T LC (LEADER)
• VESPA GTV 125 4T LC (LEADER)
• VESPA Granturismo L - GT 200 4T LC (M312M)
• VESPA GTS 125 4T LC euro 3 <-2013 (M315M)
• VESPA GTS Super 125 ie 4T LC euro 3 2014->2016 (M455M) (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519811)
• VESPA GTS Super 125 ie 4T LC euro 3 <-2013 (M455M) (ATTENTION : To be installed exclusively with Force Master 2.1 control unit art. 5519811)
