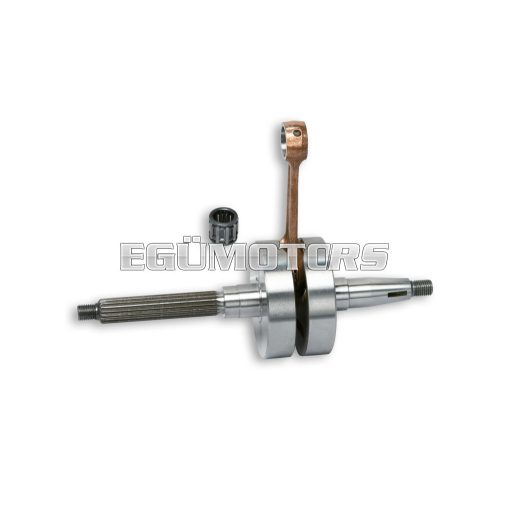

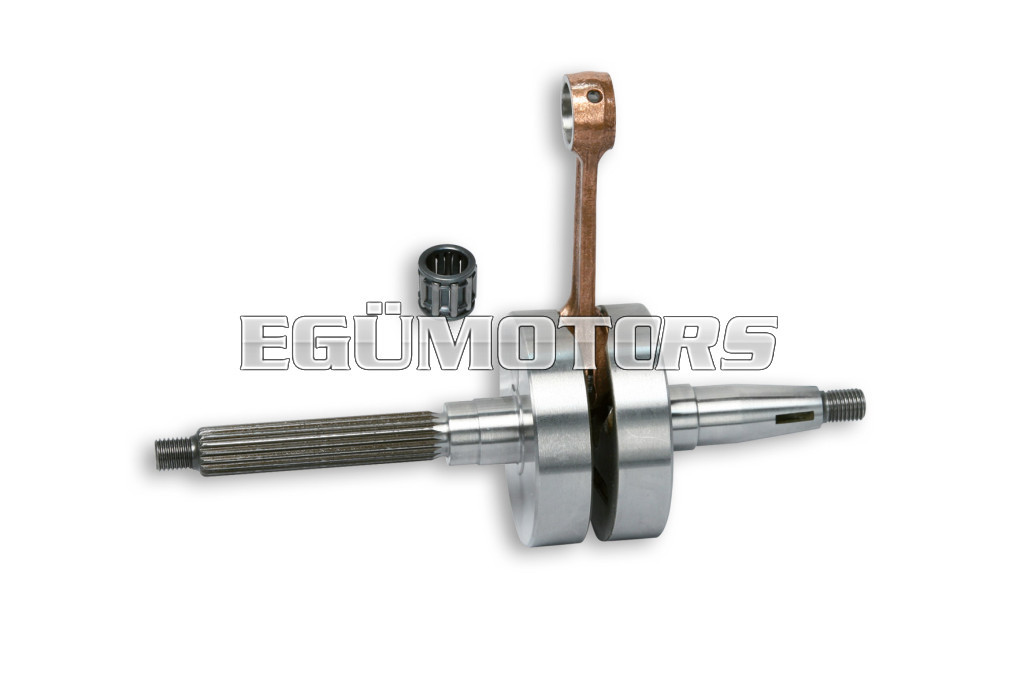

Malossi CRANKSHAFT RHQ pin 12 rod 80 (stroke 39.3 mm) PIAGGIO

R.H.Q. CRANKSHAFTS

• The crankshaft is the heart of the endothermic engine.
• All aspects of engine performances start from the crankshaft.
• It is not possible to obtain good engine performance and reliability unless a top-quality crankshaft is fitted.
• This is why Malossi produces only the very best in crankshafts.

TECHNICAL SPECIFICATIONS

• Half-shafts material: 18 Ni Cr Mo5.
• Half-shafts with forged monolithic rotating masse.
• All components are subjected to 5 heating treatment operations.
• Manufactured using high-precision machine tools.
• Excellent surface finish for improved reliability.
• Dynamic balancing for speeds of up to 16,000 rpm.
• Coppered connecting rod in forged 18 Ni Cr Mo5, connected to the engine with precision roller bearing for high speed.

Modellek:

• APRILIA MOJITO CUSTOM 50 2T
• APRILIA SCARABEO CLASSIC 50 2T euro 4 2018-> (CA91M)
• APRILIA SCARABEO STREET 50 2T (PIAGGIO)
• APRILIA SCARABEO STREET 50 2T euro 4 2018-> (CA91M)
• APRILIA SPORTCITY ONE STREET 50 2T euro 2
• APRILIA SR (carb.) 50 2T LC 2004-> (PIAGGIO)
• APRILIA SR R 50 2T LC euro 4 2018-> (PIAGGIO CA81M)
• APRILIA SR MOTARD 50 2T euro 2
• APRILIA SR MOTARD 50 2T euro 4 2018-> (CA41M)
• APRILIA SR R (carb.) 50 2T LC (PIAGGIO)
• APRILIA SR Street 50 2T LC euro 2
• DERBI ATLANTIS - BULLET 50 2T 2003->
• DERBI GP1 50 2T LC
• DERBI GP1 OPEN 50 2T LC
• DERBI GP1 REVOLUTION 50 2T LC
• DERBI VARIANT Sport 50 2T
• GILERA DNA 50 2T LC
• GILERA EASY MOVING 50 2T
• GILERA ICE 50 2T
• GILERA RUNNER SP 50 2T LC <-2005
• GILERA RUNNER SP 50 2T LC 2006-> (C451M)
• GILERA RUNNER 50 2T LC
• GILERA STORM 50 2T
• GILERA STALKER 50 2T
• GILERA TYPHOON 50 2T
• GILERA TYPHOON X 50 2T
• ITALJET JET SET 50 2T
• ITALJET TORPEDO NEW 50 2T
• PIAGGIO NRG Power 50 2T LC euro 4 2018->2020 (CA71M)
• PIAGGIO DIESIS 50 2T
• PIAGGIO NRG EXTREME 50 2T
• PIAGGIO NRG EXTREME 50 2T LC
• PIAGGIO FLY 50 2T
• PIAGGIO FREE 50 2T
• PIAGGIO LIBERTY 50 2T
• PIAGGIO NRG MC2 50 2T LC <-1997
• PIAGGIO NRG MC2 50 2T LC 1998->
• PIAGGIO NRG 50 2T LC
• PIAGGIO NRG MC3 DT 50 2T
• PIAGGIO NRG MC3 DD 50 2T LC
• PIAGGIO NTT 50 2T LC
• PIAGGIO NRG Power DD 50 2T LC
• PIAGGIO NRG Power DT 50 2T (C453M)
• PIAGGIO QUARTZ 50 2T LC
• PIAGGIO SFERA RESTYLING 50 2T
• PIAGGIO SFERA 50 2T
• PIAGGIO TYPHOON 50 2T 2007->2010
• PIAGGIO TYPHOON 50 2T euro 2 2011->2017 (C421M)
• PIAGGIO TYPHOON 50 2T euro 4 2018-> (CA41M)
• PIAGGIO ZIP Fast Rider 50 2T
• PIAGGIO ZIP 50 2T 2000-> (C25EM)
• PIAGGIO ZIP 50 2T <-1999
• PIAGGIO ZIP SP 50 2T LC 2001->
• PIAGGIO ZIP SP 50 2T LC <-2000
• VESPA ET2 50 2T 2000->
• VESPA ET2 50 2T <-1999
• VESPA LX 50 2T
• VESPA Primavera 50 2T euro 2 (C533M)
• VESPA S 50 2T euro 2 (C381M)
• VESPA Sprint 50 2T euro 2
