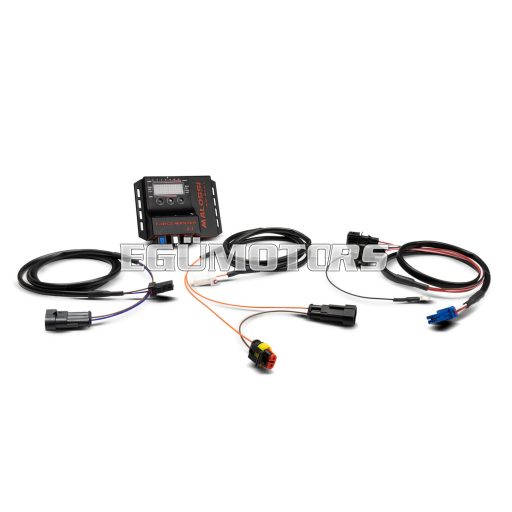

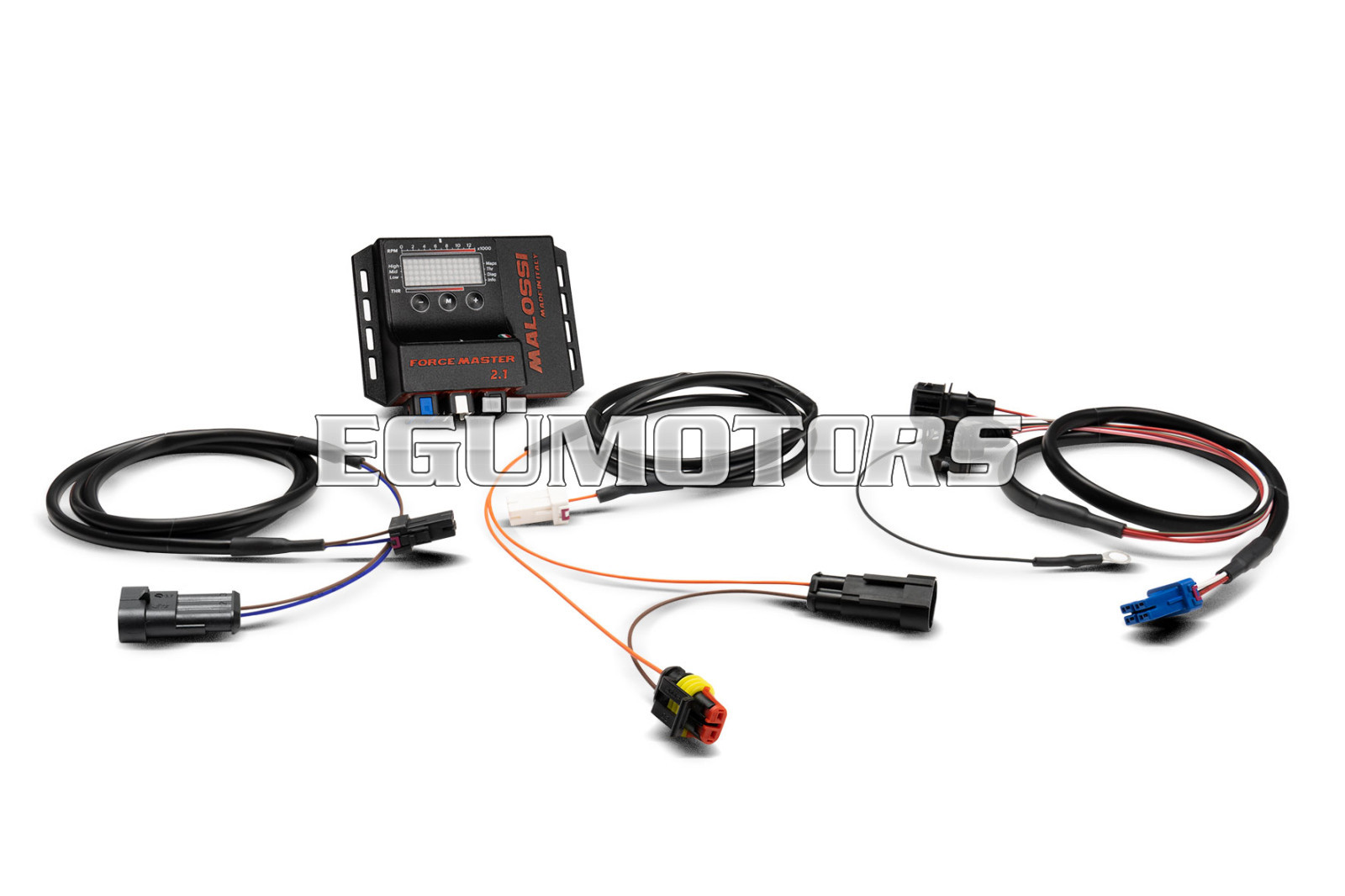

With an all-new look, the Force Master 2.1 control unit is much easier to configure. Making products more ergonomic and easy to use has always been a Malossi goal: Force Master 2.1 is a contemporary, adequate and super performing product. With an interface for the K and CAN communication lines, a new user interface and the addition of a capacitive ignition input, Force Master 2.1 is the ideal complement for vehicle performance management: without functional limitations, it allows the engine to be pushed beyond the barrier of the original rev limiter.
Technical details - Carburation adjusting
- ± 14% LOW / HIGH / MID
- RPM limiter : +1.000 RPM
- Temperature range = -30°C +80°C
- Minimum operating voltage = +7V
- Maximum operating voltage = +16V
- Average current consumption <-200mA
- Environmental protection = IP65
- 4 different maps :
- curva 0 : Malossi with DB killer exhaust system, original cylinder, original head, original camshaft, original filter
- curva 1 : Malossi with DB killer exhaust system, original cylinder, Malossi head, original camshaft, original filter
- curva 2 : original exhaust system, Malossi cylinder, Malossi head, original camshaft, original filter
- curva 3 : Malossi with DB killer exhaust system, Malossi cylinder, Malossi head, original camshaft, original filter
Full carburetion control is achieved by combining the O2 controller with the Force Master control unit. The synergy of these two devices has no limits, the entire quoted plane is managed, controlled and optimised for any processing step proposed by Malossi.
Modellek:
- APRILIA SCARABEO Special 300 ie 4T LC euro 3 (PIAGGIO M28RM)
- APRILIA SPORTCITY CUBE 300 ie 4T LC euro 3 (LEADER M28LM)
- APRILIA SR MAX 300 ie 4T LC euro 3
- DERBI RAMBLA i 300 ie 4T LC euro 3 (PIAGGIO)
- GILERA NEXUS 300 ie 4T LC euro 3
- PIAGGIO BEVERLY 300 ie 4T LC euro 3 <-2009 (M28MM)
- PIAGGIO BEVERLY 300 ie 4T LC euro 3 2010->2016 (M692M)
- PIAGGIO BEVERLY 300 ie 4T LC euro 4 2017->2020 (MA21M)
- PIAGGIO BEVERLY TOURER 300 ie 4T LC euro 3
- PIAGGIO CARNABY 300 ie 4T LC euro 3 (QUASAR)
- PIAGGIO MP3 300 ie 4T LC euro 4 2016->2018 (TA11M)
- PIAGGIO MP3 300 ie 4T LC euro 3 2009->2014 (QUASAR M634M)
- PIAGGIO MP3 300 ie 4T LC euro 3 2014->2016 (M862M)
- PIAGGIO MP3 YOURBAN SPORT 4V 300 ie 4T LC euro 4 2017->2018
- PIAGGIO X7 EVO 300 ie 4T LC euro 3 (QUASAR)
- VESPA SEI GIORNI 300 ie 4T LC euro 4 2018->
- VESPA GTS Super 300 ie 4T LC euro 3 <-2013 (QUASAR M454M)
- VESPA GTS Super 300 ie 4T LC euro 3 2014->2016 (QUASAR M454M)
- VESPA GTS Super 300 ie 4T LC euro 4 2017->2018 (QUASAR M458M-M45EM)
- VESPA GTS 300 ie 4T LC euro 4 2017->2018 (MA33M)
- VESPA GTV 300 ie 4T LC euro 3 (QUASAR)
