Silicon-steel springs with high carbon content, heat-treated, dynamically balanced, kiln painted, designed and calculated for each specific application.
| CODE | SPRING SIZES | (K)
Spring stiffness |
| A - Ø | B mm | C - Ø |
| 2916468.Y0 | 56,3 | 115 | 4 | 4,3k |
| 2914203.W0 | 56,8 | 138 | 3,8 | 2,75k |
| 2918843.R0 | 57,5 | 115 | 4 | 4,3k |
| 2911266.Y0 | 57,5 | 120 | 4,5 | 5,5k |
| 2912480.W0 | 57,8 | 150 | 4,2 | 4k |
| 2916464.Y0 | 58 | 128 | 4,3 | 5,4k |
| 2916465.R0 | 58 | 135 | 4,3 | 5,4k |
| 2916466.W0 | 58 | 142 | 4 | 3,5k |
| 2915553.Y0 | 58,3 | 105 | 4,3 | 7,3k |
| 2916498.R0 | 58,6 | 112 | 4,3 | 6,8k |
| 2911384.Y0 | 58,7 | 75 | 5 | 13,2k |
| 2915464.W0 | 60 | 95 | 5 | 10k |
| 2912647.Y0 | 63,1 | 120 | 4,6 | 4,5k |
| 2916460.R0 | 65 | 108 | 4,7 | 7,2k |
| 2916459.Y0 | 65 | 112 | 4,6 | 6,6k |
| 2911478.W0 | 65 | 116 | 4,5 | 6k |
| 29 9976.R0 | 65,4 | 100 | 5,2 | 9k |
| 2911084.W0 | 65,7 | 170 | 4,7 | 4,2k |
| 29 9975.Y0 | 67 | 115 | 5,2 | 7,6k |
| 2918425.Y0 | 67 | 120 | 5 | 6k |
| 2914120.W0 | 67,2 | 120 | 5,2 | 10k |
| 2918426.R0 | 67,2 | 130 | 5 | 6,2k |
| 2911074.Y0 | 67,2 | 181 | 4,7 | 3,5k |
| 2913316.W0 | 67,4 | 107 | 5,2 | 9,5k |
| 2916497.R0 | 67,6 | 120 | 5,2 | 9,5k |
| 2916484.Y0 | 67,7 | 112 | 5,2 | 9,5k |
| 2916113.W0 | 67,9 | 120 | 5,4 | 9k |
| 2911072.W0 | 68 | 100 | 5,2 | 10k |
| 2914712.W0 | 68 | 120 | 5,2 | 12k |

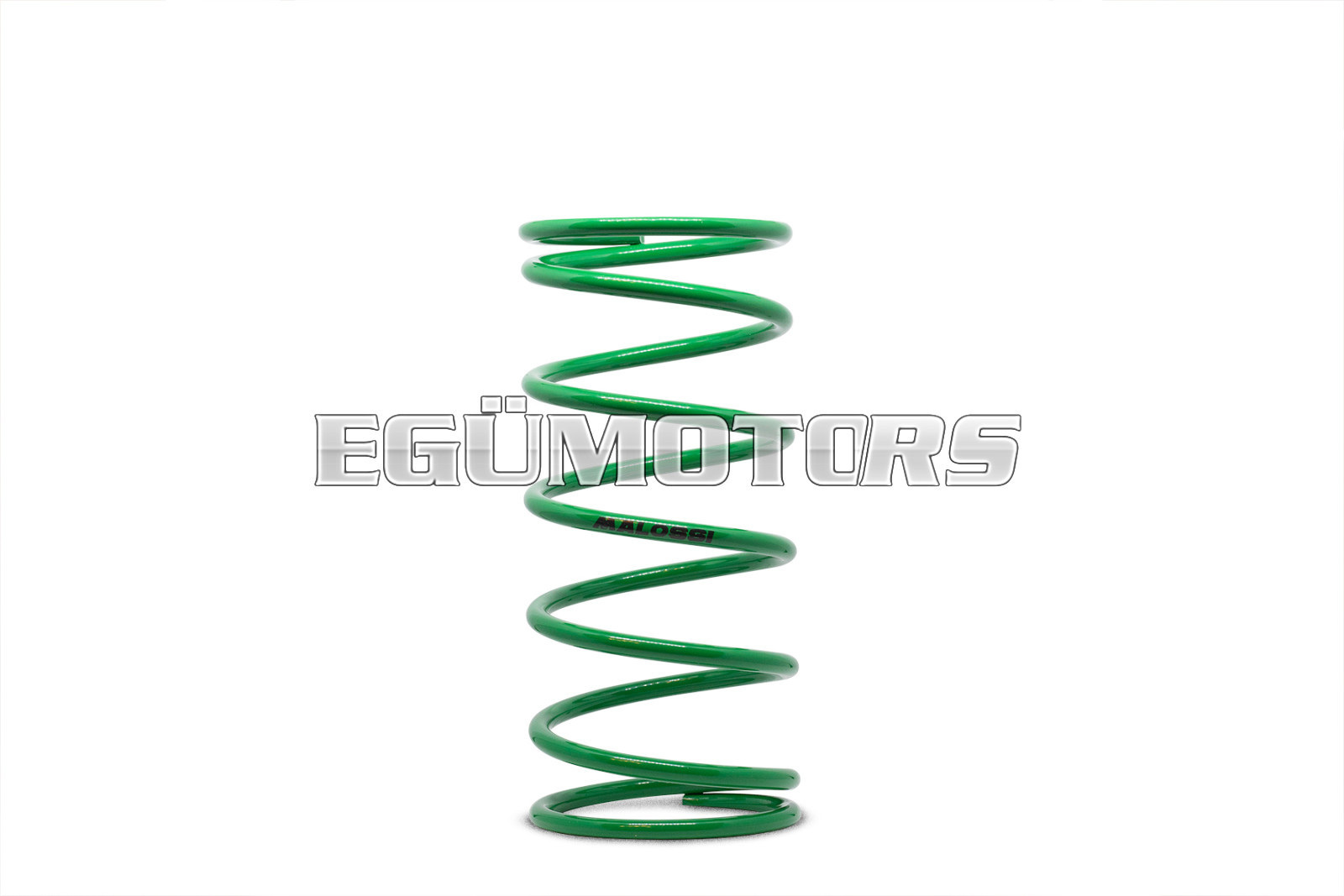

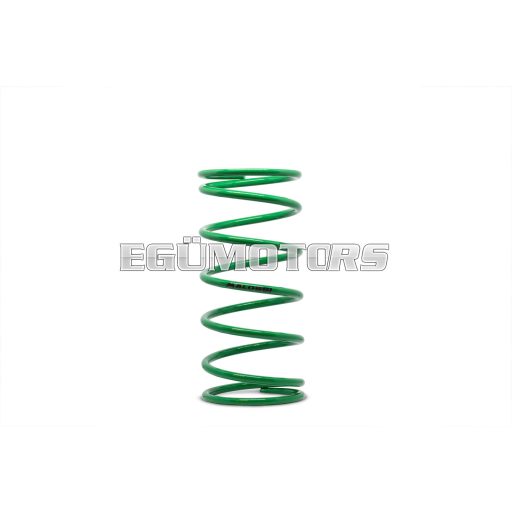

| 2914401.G0 | 70,3 | 156,5 | 5,5 | 7k |
| 2914023.R0 | 70,5 | 126 | 6,5 | 14k |
| 2914024.Y0 | 70,5 | 138 | 6 | 9,4k |
| 2917874.V0 | 70,75 | 105 | 6,5 | 20k |
| 2912772.W0 | 71 | 129 | 6 | 11,5k |
| 2915315.W0 | 73 | 96 | 6 | 14,1k |
| 2916114.W0 | 75,7 | 160 | 5,7 | 7,7k |
| 2916507.Y0 | 77,2 | 153 | 5,7 | 6,9k |
| 2916508.R0 | 77,2 | 160 | 5,7 | 6,9k |
| 2913003.W0 | 77,7 | 130 | 6 | 8,9k |
| 2911429.Y0 | 78 | 150 | 5,5 | 6,3k |
| 2919125.W0 | 78,8 | 96 | 6,3 | 14k |
| 2913344.W0 | 80,4 | 115 | 6,5 | 11,2k |
| 2912478.W0 | 81 | 130 | 7 | 15k |
| 2914121.W0 | 85,1 | 205 | 6,5 | 7,2k |
| 2915497.W0 | 88 | 135 | 7 | 11k |
Modellek:
- KYMCO AK 550 ie 4T LC euro 4 2017->2020 (SAA1) (for Multivar 2000 and original variator - rigidity increase compared to original spring: -39%)
- KYMCO AK 550 ie 4T LC euro 5 2021-> (SBA1) (for Multivar 2000 and original variator - rigidity increase compared to original spring: -39%)
- SYM MAXSYM 500 ie 4T LC euro 4 2020-> (For Taiwan market)
- YAMAHA T MAX 500 ie 4T LC 2004->2007 (for Multivar 2000 and original variator - rigidity increase compared to original spring: -39%)
- YAMAHA T MAX 500 ie 4T LC 2008->2011 (for Multivar 2000 and original variator - rigidity increase compared to original spring: -39%)
- YAMAHA T MAX 530 ie 4T LC 2012->2014 (J409E) (for Multivar 2000 and original variator - rigidity increase compared to original spring: -39%)
- YAMAHA T MAX 530 ie 4T LC 2015->2016 (J409E) (for Multivar 2000 and original variator - rigidity increase compared to original spring: -39%)
- YAMAHA T MAX 530 ie 4T LC euro 4 2017-> (J415E) (for Multivar 2000 and original variator - rigidity increase compared to original spring: -39%)
- YAMAHA T MAX 560 ie 4T LC euro 5 2020->2021 (J420E) (for Multivar 2000 and original variator - rigidity increase compared to original spring: -39%)
- YAMAHA T MAX 560 ie 4T LC euro 5 2022->2024 (for Multivar 2000 and original variator - rigidity increase compared to original spring: -39%)
- YAMAHA T MAX (carb.) 500 4T LC 2001->2003 (for Multivar 2000 and original variator - rigidity increase compared to original spring: -39%)
- YAMAHA T MAX DX 530 ie 4T LC euro 4 2017-> (J415E) (for Multivar 2000 and original variator - rigidity increase compared to original spring: -39%)
- YAMAHA T MAX SX 530 ie 4T LC euro 4 2017-> (J415E) (for Multivar 2000 and original variator - rigidity increase compared to original spring: -39%)
- YAMAHA T MAX Tech MAX 560 ie 4T LC euro 5 2020->2021 (J420E) (for Multivar 2000 and original variator - rigidity increase compared to original spring: -39%)
- YAMAHA T MAX Tech MAX 560 ie 4T LC euro 5 2022->2024 (for Multivar 2000 and original variator - rigidity increase compared to original spring: -39%)
- KYMCO AK Premium 550 ie 4T LC euro 5 2023-> (SBA1B) (for Multivar 2000 and original variator - rigidity increase compared to original spring: -39%)
