K-DRIVE MALOSSI
Malossi K-DRIVE is a lighter gear ratio than the original for the Yamaha Tmax 530 - 560.
Characterised by a sought-after appearance, the K-DRIVE crowns and pinions have different ratios to satisfy all the rider’s requirements.

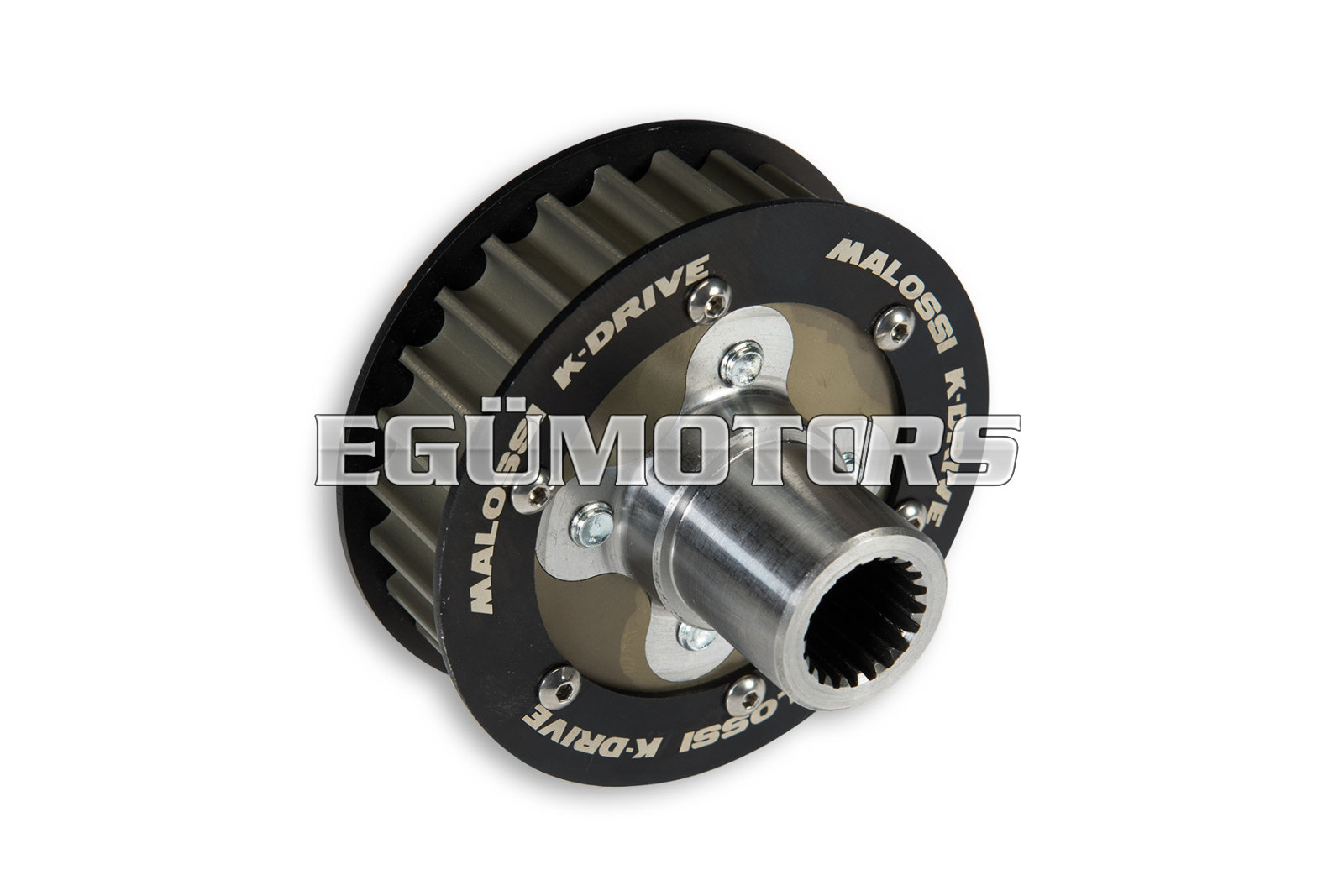

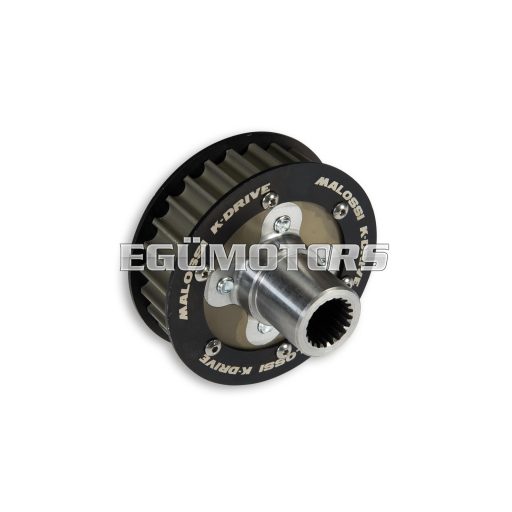

Pinion
6118805B Z 25
6118804B Z 27
6118814 Z 28
6118815 Z 29
Crown
6118806B Z 60
TECHNICAL SPECIFICATIONS
The pinions are made from aluminium with hard oxidisation 25 microns deep. With this treatment Malossi has maintained a particularly light shape of the piece whilst guaranteeing high wear resistance. The central hub is made from a special steel alloy, not heat treated in order to avoid making it too hard and thus causing friction problems with the motor transmission shaft. The following tooth options are proposed z.: 24. 27. 28. 29.
| COUPLING TABLE K-DRIVE CROWN - PINION |
| Pinions | Crowns | Ratio | % Ratio |
| 25 | 60 | 2,400 | - 5.8% |
| 25 | 59 | 2,360 | - 4.0% |
| 25 | 58 | 2,320 | - 2.2% |
| 26 | 60 | 2,308 | - 1.7% |
| 25 | 57 | 2,280 | - 0.5% |
| 26 | 59 | 2,269 | Original |
| 25 | 56 | 2,240 | + 1.3% |
| 26 | 58 | 2,231 | + 1.7% |
| 27 | 60 | 2,222 | + 2.1% |
| 27 | 59 | 2,185 | + 3.7% |
| 27 | 58 | 2,148 | + 5.3% |
| 28 | 60 | 2,143 | + 5.6% |
| 28 | 59 | 2,107 | + 7.1% |
| 28 | 58 | 2,071 | + 8.7% |
| 29 | 60 | 2,069 | + 8.8% |
| 28 | 57 | 2,036 | + 10.3% |
| 29 | 59 | 2,034 | + 10.3% |
| 28 | 56 | 2,000 | + 11.9% |
| 29 | 58 | 2,000 | + 11.9% |
| 29 | 57 | 1,966 | + 13.4% |
| 29 | 56 | 1,931 | + 14.9% |
Modellek:
- YAMAHA T MAX 560 ie 4T LC euro 5 2020->2021 (J420E)
- YAMAHA T MAX 560 ie 4T LC euro 5 2022->2024
- YAMAHA T MAX Tech MAX 560 ie 4T LC euro 5 2020->2021 (J420E)
- YAMAHA T MAX Tech MAX 560 ie 4T LC euro 5 2022->2024
