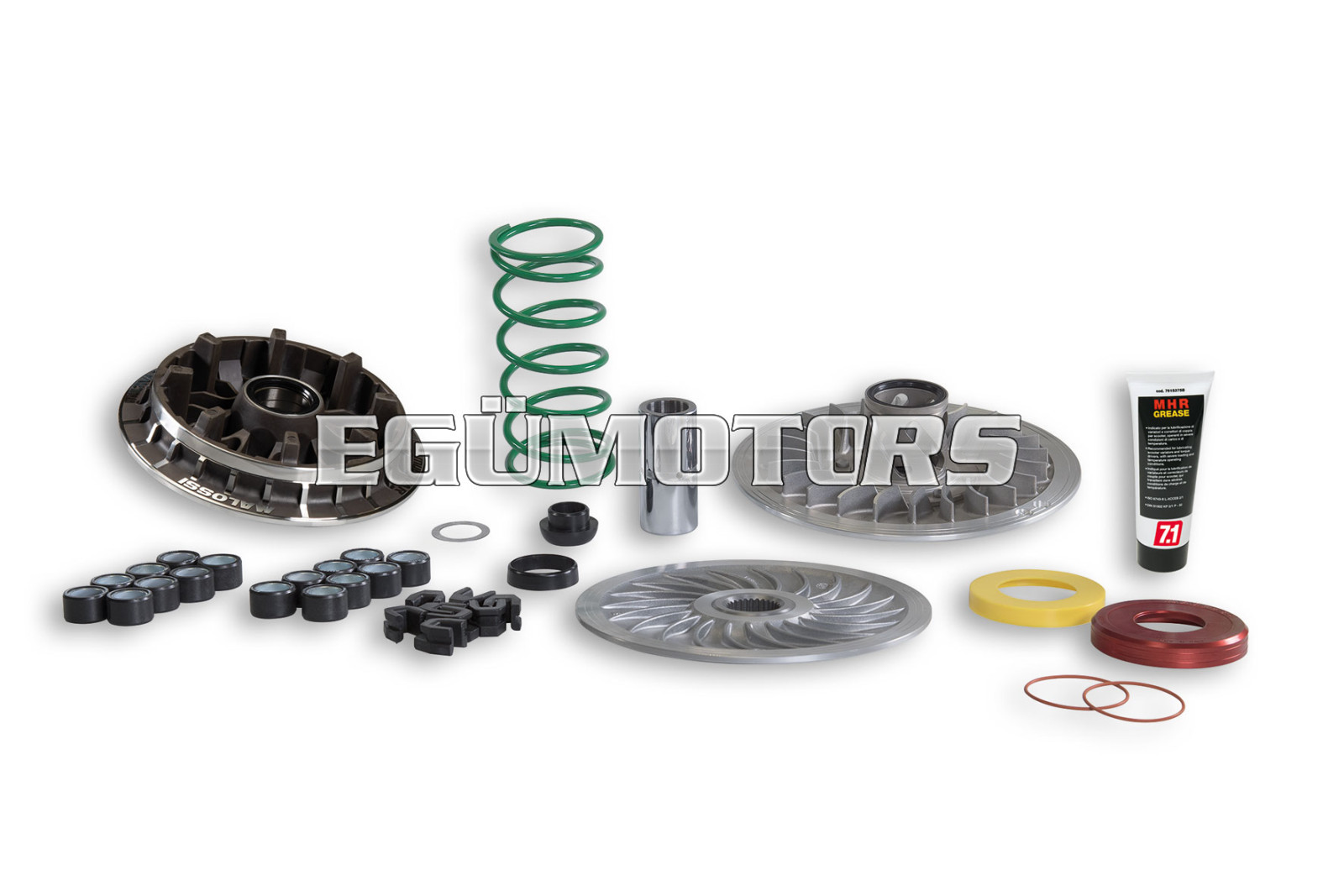

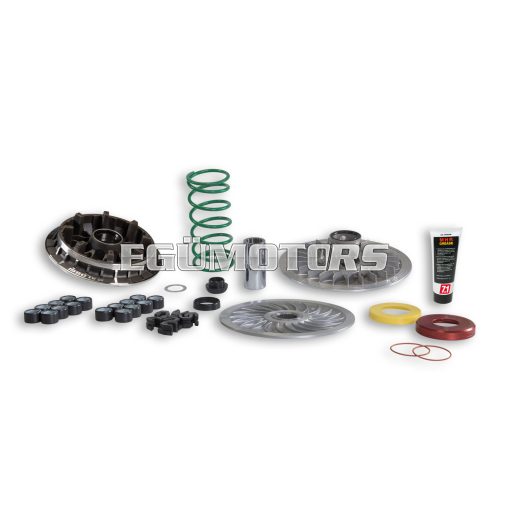

Thus, the Over Range is renewed as well: new variator!
This new system is based on Multivar MHR Next, which – matched with the other parts - allows to achieve really unique performances!
The torque driver (movable pulley) has a larger diameter compared to the original one and the very latest specifications, allowing to have a greater velocity-ratio range compared to the original pulley.
Malossi engineers have also taken particular care in realising this pulley right down to the smallest detail, using special materials and a particular type of thermochemical treatment that ensures exceptional surface hardness and therefore excellent wear and abrasion resistance.
The fixed half-pulley completes the OVER RANGE: this component features a diamond finish of the belt-side pulley surface and a redesigned working angle to further increase the gearing range.
The whole completion of OVER RANGE system is given by the torsion controller.
NB: When you install the Malossi over range, ABSOLUTELY DO NOT USE the shim supplied with the variator, as the belt would hit the crankcase.
Modellek:
- YAMAHA T MAX 530 ie 4T LC 2012->2014 (J409E)
- YAMAHA T MAX 530 ie 4T LC 2015->2016 (J409E)
