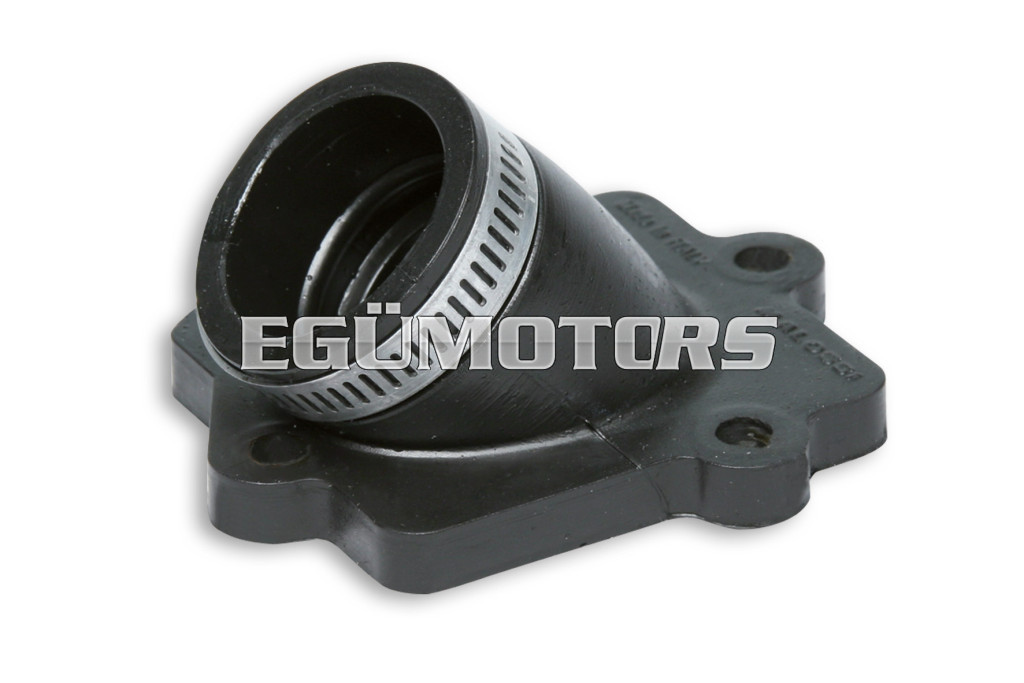

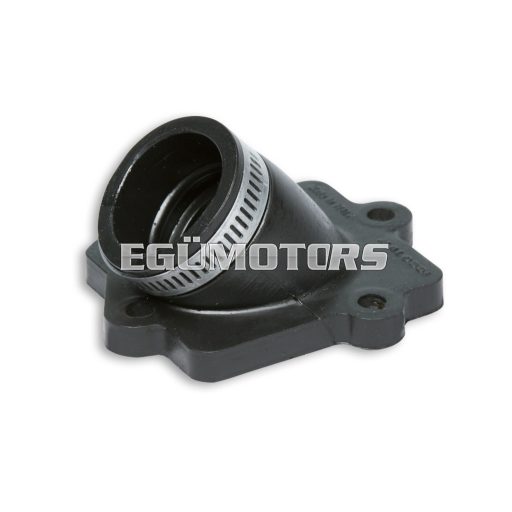

Malossi RACING NBR szívócsonk, Minarelli fekvő, 2T 50

A szívócsonk feladata, hogy a levegő-üzemanyag keveréket a membránszelepen keresztül eljuttassa a motorba.

Egy motor összhatásfokát több részleges hatásfok szorzata adja meg, például:

• térfogati hatásfok
• termodinamikai hatásfok
• mechanikai hatásfok

A térfogati hatásfok a ténylegesen bejutó üzemanyag-levegő keverék mennyisége és a motor lökettérfogata közötti arány.

A térfogati hatásfokot jelentősen befolyásolja a keverék útján fellépő áramlási veszteség, amely a légszűrőtől az égéstérig keletkezik. Ennek egyik legfontosabb oka az a súrlódás, amelyet a keverék (levegő-üzemanyag) az áramlás során tapasztal. Mivel a keverék teljes mennyiségének át kell haladnia a szívócsövön, annak kialakítása kulcsfontosságú a veszteségek minimalizálása érdekében. Ezért elengedhetetlen a hirtelen keresztmetszet-növekedések és az éles irányváltások elkerülése az áramlási útvonalon.

A szívócsonk másik fontos szerepe, hogy friss keverék tartályként is működik: mivel a mozgásban lévő keveréknek időre van szüksége a megálláshoz, amikor a membránszelep zár, a keverék egy része a szívócsőben halmozódik fel, és nyomást gyakorol a membránra. Emiatt minden szívócső rendelkezik egy meghatározott fordulatszám-tartománnyal, amelyben a legnagyobb hatásfokot képes nyújtani – ezt nevezzük hangolt szívócsőnek.

Ezen kívül a szívócsonk rögzíti a karburátort a motorblokkhoz vagy a hengerhez, csillapítja a rezgéseket a blokk és a karburátor között, ezáltal megakadályozza az üzemanyag-levegő emulzió keletkezését a karburátor úszóházában.

• Ez a látszólag egyszerű alkatrész tehát komoly tervezést igényel ahhoz, hogy minden tulajdonságát maximálisan ki lehessen aknázni.
• A Malossi mérnökei ezt a feladatot tökéletesen megoldották. A cég, amely évtizedek óta fejleszt üzemanyagellátó rendszereket, új generációs robogókhoz fejlesztett ki gumiból és alumíniumötvözetből készült szívócső-sorozatot, melyet közúti és versenypályás körülmények között is teszteltek és optimalizáltak.
• A Malossi gumiból készült szívócsonkjai kompozit szerkezetűek: gyártásuk alumíniumbetétből indul ki, amelyet egy speciális, olaj- és üzemanyagálló műanyaggal burkolnak. Ez az eljárás nagyobb merevséget biztosít a rögzítési pontokon, miközben maga a szívócső test kellően rugalmas marad.

ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic.

Modellek:

• AEON MOTOR COBRA 50 2T (AT70) (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• APRILIA SR 50 2T 1994-> (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• APRILIA AREA 51 50 2T LC (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• APRILIA GULLIVER 50 2T LC (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• APRILIA GULLIVER 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• APRILIA RALLY 50 2T (MINARELLI) (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• APRILIA SR NETSCAPER 50 2T LC (MINARELLI) (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• APRILIA RALLY 50 2T LC (MINARELLI) (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• APRILIA SCARABEO 50 2T (MINARELLI) (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• APRILIA SR RACING 50 2T LC (MINARELLI) (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• APRILIA SONIC 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• APRILIA SONIC 50 2T LC (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• APRILIA SR REPLICA 50 2T LC <-1999 (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• APRILIA SR STEALTH 50 2T LC (MINARELLI) (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• APRILIA SR WWW 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• ATALA CAROSELLO 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• BENELLI 491 SPORT 50 2T LC (MINARELLI) (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• BETA ARK 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• BETA ARK 50 2T LC (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• BETA CHRONO 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• BETA EIKON 50 2T LC (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• BENELLI 491 GT 50 2T (MINARELLI) (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• BENELLI K2 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• BENELLI K2 50 2T LC (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• BENELLI NAKED 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• BENELLI PEPE 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• BENELLI PEPE LX 50 2T euro 2 (QJ1E40QMB-4) (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• BETA QUADRA 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• BENELLI QuattronoveX 50 2T euro 2 (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• BETA TEMPO 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• CPI ARAGON GP 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• CPI HUSSAR 50 2T <-2002 (50 C) (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• CPI HUSSAR 50 2T 2003-> (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• CPI OLIVER 50 2T <-2002 (50 C) (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• CPI OLIVER 50 2T 2003-> (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• CPI POPCORN 50 2T <-2002 (50 C) (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• CPI POPCORN 50 2T 2003-> (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• EXPLORER CRACKER 50 2T 2003-> (GE 1E 400 MB) (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• GARELLI GSP 50 2T LC euro 2 (1PE40MB) (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• HUPPER MONTECARLO 30 50 2T (1E40QMB) (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• ITALJET DRAGSTER 50 2T LC (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MALAGUTI F10 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MALAGUTI F10 WAP 50 2T euro 2 (QJ*CMA03C*) (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MALAGUTI F12-PHANTOM 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MALAGUTI CENTRO 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MALAGUTI CIAK 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MALAGUTI F15 FIREFOX 50 2T LC (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MALAGUTI F12 DIGIT KAT-PHANTOM 50 2T LC (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MALAGUTI F12 DIGIT KAT-PHANTOM 50 2T LC euro 2 (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MALAGUTI F12-PHANTOM 50 2T LC (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MALAGUTI F12 R ARIA 50 2T euro 2 (QJ*CMA02C*) (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MALAGUTI F12 R LC 50 2T LC euro 2 (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MALAGUTI YESTERDAY 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MBK EVOLIS 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MBK FIZZ 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MBK FLIPPER 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MBK FORTE 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MBK HOT CHAMP 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MBK MACH G 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MBK MACH G 50 2T LC (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MBK NITRO 50 2T LC (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MBK OVETTO 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• MBK SORRISO 50 2T 1996-> (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• YAMAHA AEROX 50 2T LC euro 0-1 (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• YAMAHA AEROX 50 2T LC euro 2 (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• YAMAHA AXIS 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• YAMAHA BREEZE 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• YAMAHA JOG ER 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• YAMAHA JOG 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• YAMAHA JOG R 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• YAMAHA JOGRR 50 2T LC euro 2 (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• YAMAHA JOG Z 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• YAMAHA NEO'S 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• YAMAHA VINO 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• YAMAHA WHY 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
• YAMAHA ZEST 50 2T (Not suitable for original air box filter - ATTENTION: in order to use the MHR manifolds it is necessary to perform some small modifications to the adjacent plastic)
