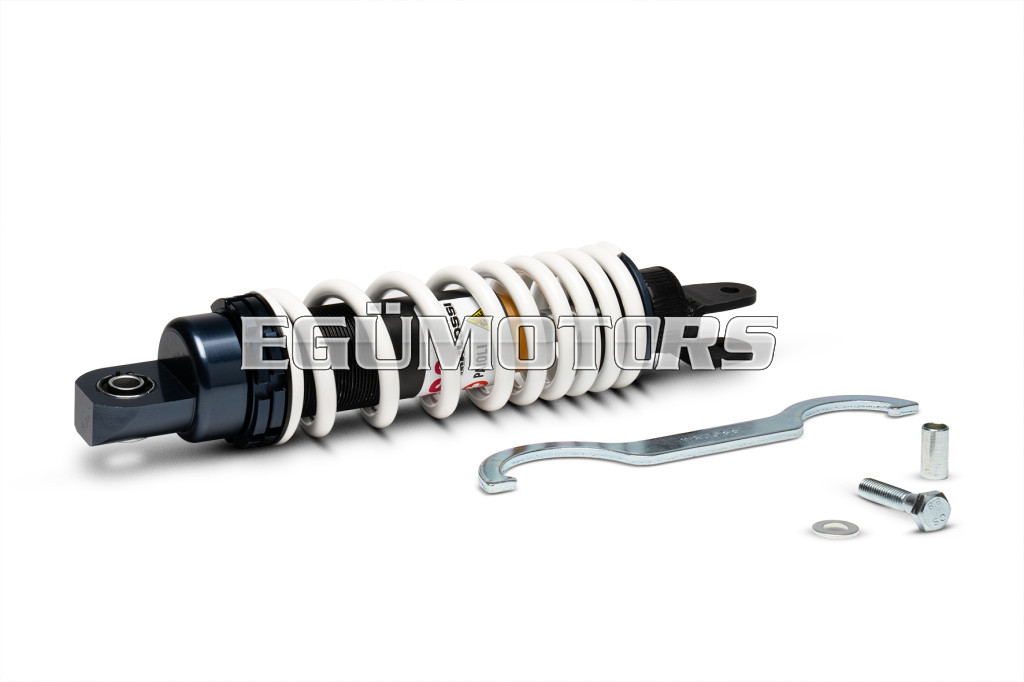

It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation.
- Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration.
- LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound).
- Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB).
- Polyester resin SEALTHANE grade 9345 scraper ring.
- 38NCD4 alloy steel shock absorber rod ø 14 mm, hardened and tempered with hard chrome deposit thickness 25/30 microns (superficial hardness of the untreated shaft HRC 55/60).
| Code |
| Inter-axis mm | Stroke mm |
| 46 7588 | rear | 267 | 42 |
| 46 7900 | front | 205 | 60 |
| 46 8308 | rear | 294 | 65 |
| 4611641 | rear | 410 | 85 |
| 4612962 | rear | 290 | 54 |
| 4613055 | rear | 307 | 60 |
| 4613598 | rear | 316 | 45 |
| 4614615 | front | 257 | 90 |
4615218 | rear | 336 | 86 |
4620074 | rear | 336 | 86 |
4617065 | rear | 360 | 70 |
4617076 | front | 275 | 58 |
| 4617558 | front | 227 | 75 |
| 4619983 | front | 225 | 60 |
Modellek:
- APRILIA AMICO 50 2T
- ATALA HACKER 50 2T
- ATALA CAROSELLO 50 2T (20 mm longer wheelbase)
- ATALA HACKER 50 2T LC
- BETA CHRONO 50 2T (20 mm longer wheelbase)
- BENELLI PEPE 50 2T (20 mm longer wheelbase)
- BETA TEMPO 50 2T (20 mm longer wheelbase)
- BSV AX 50 (20 mm longer wheelbase)
- BSV DIO GP 50 (AF18E) (ALSO for MHR)
- BSV GZ 50 (20 mm longer wheelbase)
- BSV DIO SP 50 (AF18E)
- BSV DIO SR 50 (AF18E)
- BSV DIO ZX 50 <-1993 (AF18E)
- FANTIC BIG WHEEL 50 2T (20 mm longer wheelbase)
- GARELLI FLEXI' 50 4T euro 2 (1P139 QMB)
- GARELLI PONY 50 2T (20 mm longer wheelbase)
- GARELLI SR 50 2T (20 mm longer wheelbase)
- HONDA AERO NB 50 2T 1987
- HONDA DIO G 50 2T (AF18E)
- HONDA SFX 50 2T
- HONDA DIO SP 50 2T (AF18E)
- HONDA DIO SR 50 2T (AF18E)
- HONDA SXR 50 2T
- HONDA VISION 50 2T
- HONDA VISION MET IN 50 2T
- HONDA DIO ZX 50 2T <-1993 (AF18E)
- HSC SC 01 L 50 (AF18E)
- HSC SC 01 50 (AF18E)
- ITALJET BAZOOKA 50 2T (20 mm longer wheelbase)
- ITALJET FORMULA 50 2T (F.MORINI)
- ITALJET FORMULA 50 2T LC (F.MORINI)
- ITALJET PISTA 2 50 2T (20 mm longer wheelbase)
- ITALJET REPORTER 50 (20 mm longer wheelbase)
- ITALJET TORPEDO 50 2T
- ITALJET VELOCIFERO 50 2T
- ITALJET YANKEE 50 2T (20 mm longer wheelbase)
- KEEWAY F-ACT 50 2T
- KEEWAY HURRICANE 50 2T euro 2 (KW1E40QMB)
- KEEWAY MATRIX 50 2T (KW1E40QMB-4)
- KEEWAY PIXEL 50 2T euro 2 (KW1E40QMB ) (20 mm longer wheelbase)
- KYMCO DJ X 50 2T
- LEM FLASH 50 (20 mm longer wheelbase)
- LEM GHIBLI 50 (20 mm longer wheelbase)
- LEM TORNADO 50 (20 mm longer wheelbase)
- MALAGUTI F10 50 2T (20 mm longer wheelbase)
- MALAGUTI F10 WAP 50 2T euro 2 (QJ*CMA03C*) (20 mm longer wheelbase)
- MALAGUTI F12-PHANTOM 50 2T
- MALAGUTI CENTRO 50 2T (20 mm longer wheelbase)
- MALAGUTI F12 DIGIT KAT-PHANTOM 50 2T LC
- MALAGUTI F12 DIGIT KAT-PHANTOM 50 2T LC euro 2
- MALAGUTI F12-PHANTOM 50 2T LC
- MALAGUTI F12 R LC 50 2T LC euro 2
- MALAGUTI YESTERDAY 50 2T (20 mm longer wheelbase)
- MBK ACTIVE 50 (20 mm longer wheelbase)
- MBK BOOSTER 50 2T euro 0-1 (20 mm longer wheelbase)
- MBK BOOSTER 50 2T euro 2 (A137E)
- MBK BOOSTER SPIRIT 50 2T euro 0-1 (20 mm longer wheelbase)
- MBK EVOLIS 50 2T (20 mm longer wheelbase)
- MBK FIZZ 50 2T (20 mm longer wheelbase)
- MBK FORTE 50 2T (20 mm longer wheelbase)
- MBK HOT CHAMP 50 2T (20 mm longer wheelbase)
- MBK BOOSTER NAKED 50 2T euro 2 (A137E)
- MBK BOOSTER NG 50 2T euro 0-1 (20 mm longer wheelbase)
- MBK BOOSTER NG 50 2T euro 2 (A137E)
- MBK BOOSTER ROCKET 50 2T euro 0-1 (20 mm longer wheelbase)
- MBK BOOSTER ROCKET 50 2T euro 2 (A137E)
- MBK SORRISO 50 2T 1996-> (20 mm longer wheelbase)
- MBK SORRISO 50 2T <-1995 (20 mm longer wheelbase)
- MBK STUNT 50 2T euro 2
- MBK TARGET 50 2T (20 mm longer wheelbase)
- OVER B3 50 4T LC (LJ1P38MB)
- PEUGEOT METAL-X 50 2T
- PEUGEOT X-FIGHT 50 2T LC
- PEUGEOT ZENITH 50 2T (20 mm longer wheelbase)
- PGO BIG MAX 50
- RIZZATO VAMOS 50
- SUZUKI ADDRESS AH 50 2T
- SUZUKI AP 50 2T
- SUZUKI SEPIA 50 2T
- SUZUKI SEPIA ZZ 50 2T
- YAMAHA AXIS 50 2T (20 mm longer wheelbase)
- YAMAHA BELUGA 50 (20 mm longer wheelbase)
- YAMAHA BREEZE 50 2T (20 mm longer wheelbase)
- YAMAHA BW'S 50 2T euro 0-1 (20 mm longer wheelbase)
- YAMAHA BW'S 50 2T euro 2 (A137E)
- YAMAHA BW'S Original/Naked 50 2T euro 2 2010-> (A137E)
- YAMAHA BW'S NG 50 2T euro 0-1 (20 mm longer wheelbase)
- YAMAHA BW'S NG 50 2T euro 2 (A137E)
- YAMAHA CRZ 50 2T (20 mm longer wheelbase)
- YAMAHA CT 50 2T (20 mm longer wheelbase)
- YAMAHA JOG ER 50 2T (20 mm longer wheelbase)
- YAMAHA JOG 50 2T (20 mm longer wheelbase)
- YAMAHA JOG Z 50 2T (20 mm longer wheelbase)
- YAMAHA SPY 50 2T (20 mm longer wheelbase)
- YAMAHA ZEST 50 2T (20 mm longer wheelbase)
- YAMAHA ZUMA 50 2T (20 mm longer wheelbase)
- TNT MOTOR CANCUN 50 4T euro 5 2023-> (LJ139QMB-2) (20 mm longer wheelbase)
