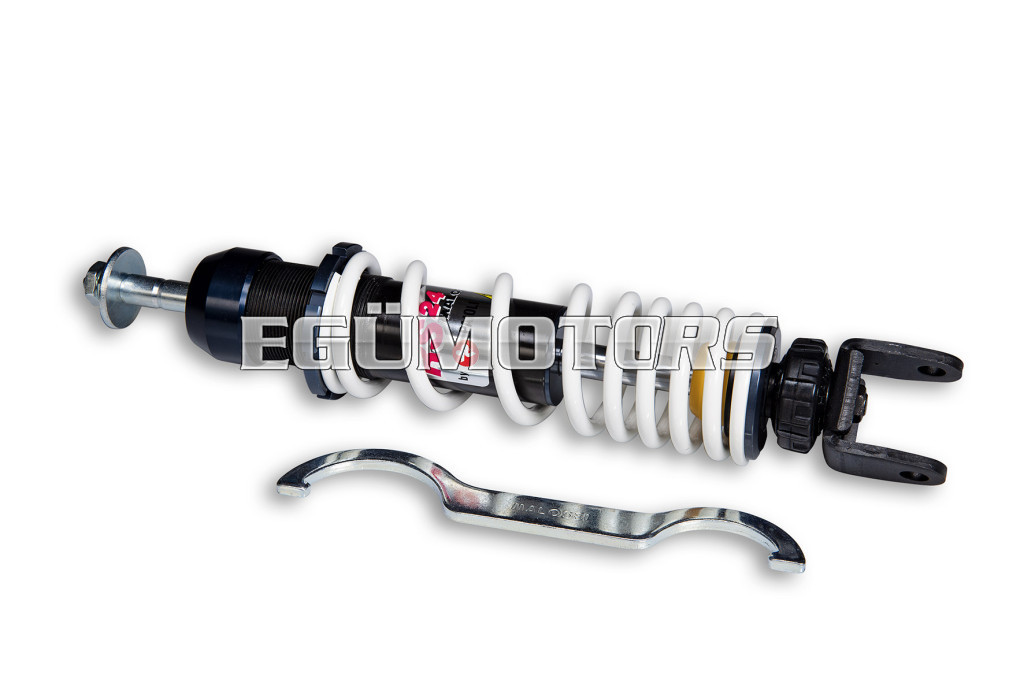

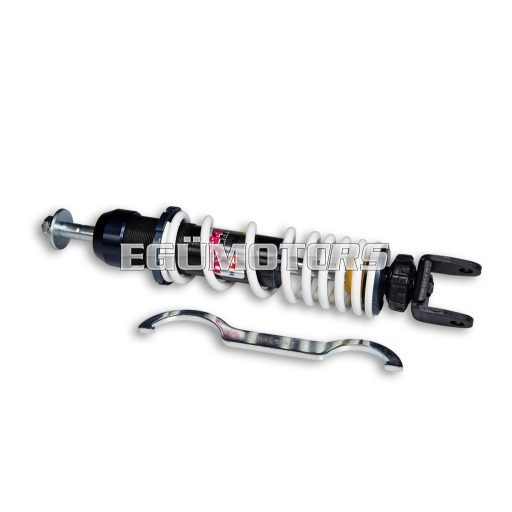

It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation.
- Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration.
- LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound).
- Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB).
- Polyester resin SEALTHANE grade 9345 scraper ring.
- 38NCD4 alloy steel shock absorber rod ø 14 mm, hardened and tempered with hard chrome deposit thickness 25/30 microns (superficial hardness of the untreated shaft HRC 55/60).
Code |
| Inter-axis mm | Stroke mm |
46 7588 | rear | 267 | 42 |
46 7900 | front | 205 | 60 |
46 8308 | rear | 294 | 65 |
4611641 | rear | 410 | 85 |
4612962 | rear | 290 | 54 |
4613055 | rear | 307 | 60 |
4613598 | rear | 316 | 45 |
4614615 | front | 257 | 90 |
4615218 | rear | 336 | 86 |
4620074 | rear | 336 | 86 |
4617065 | rear | 360 | 70 |
4617076 | front | 275 | 58 |
4617558 | front | 227 | 75 |
4619983 | front | 225 | 60 |
Modellek:
- APRILIA SR MOTARD 50 2T euro 2
- GILERA EASY MOVING 50 2T
- GILERA RUNNER PureJet 50 2T LC <-2005
- GILERA RUNNER PureJet 50 2T LC 2006->
- GILERA RUNNER SP 50 2T LC <-2005
- GILERA RUNNER SP 50 2T LC 2006-> (C451M)
- GILERA RUNNER FX 125 2T LC
- GILERA RUNNER FXR - SP 180 2T LC
- GILERA RUNNER 50 2T LC
- GILERA STORM 50 2T
- GILERA STALKER 50 2T
- GILERA TYPHOON X 125 2T
- GILERA TYPHOON 125 2T
- GILERA TYPHOON 50 2T
- GILERA TYPHOON X 50 2T
- PIAGGIO NRG Power 50 2T LC euro 4 2018->2020 (CA71M)
- PIAGGIO NRG EXTREME 50 2T (ALSO for MHR)
- PIAGGIO NRG EXTREME 50 2T LC (ALSO for MHR)
- PIAGGIO FREE 50 2T (ALSO for MHR)
- PIAGGIO LIBERTY 125 4T euro 0-1 <-1999
- PIAGGIO LIBERTY 50 2T (ALSO for MHR)
- PIAGGIO NRG MC2 50 2T LC <-1997 (ALSO for MHR)
- PIAGGIO NRG MC2 50 2T LC 1998-> (ALSO for MHR)
- PIAGGIO NRG 50 2T LC (ALSO for MHR)
- PIAGGIO NRG MC3 DT 50 2T (ALSO for MHR)
- PIAGGIO NRG MC3 DD 50 2T LC (ALSO for MHR)
- PIAGGIO NTT 50 2T LC (ALSO for MHR)
- PIAGGIO NRG Power DD 50 2T LC
- PIAGGIO NRG Power DT 50 2T (C453M) (ALSO for MHR)
- PIAGGIO NRG Power Purejet 50 2T LC
- PIAGGIO QUARTZ 50 2T LC
- PIAGGIO SFERA RESTYLING 50 2T
- PIAGGIO SFERA 50 2T
- PIAGGIO SFERA 75 2T
- PIAGGIO SKIPPER 125 2T
- PIAGGIO SKIPPER 150 2T
- PIAGGIO SKIPPER LX 125 2T
- PIAGGIO SKIPPER LXT 150 2T
- PIAGGIO TYPHOON 50 2T 2007->2010
- PIAGGIO ZIP Fast Rider 50 2T (ALSO for MHR)
- PIAGGIO ZIP 50 2T 2000-> (C25EM)
- PIAGGIO ZIP 50 2T <-1999 (ALSO for MHR)
- PIAGGIO ZIP 50 4T
- PIAGGIO ZIP SP 50 2T LC 2001->
- PIAGGIO ZIP SP 50 2T LC <-2000
- VESPA ET4 50 4T
- VESPA ET4 125 4T
- VESPA ET2 50 2T 2000->
- VESPA ET2 50 2T <-1999
- VESPA LX 4V 50 4T euro 2
- VESPA S 50 2T euro 2 (C381M)
- VESPA S 4V 50 4T euro 2 (C386M)
