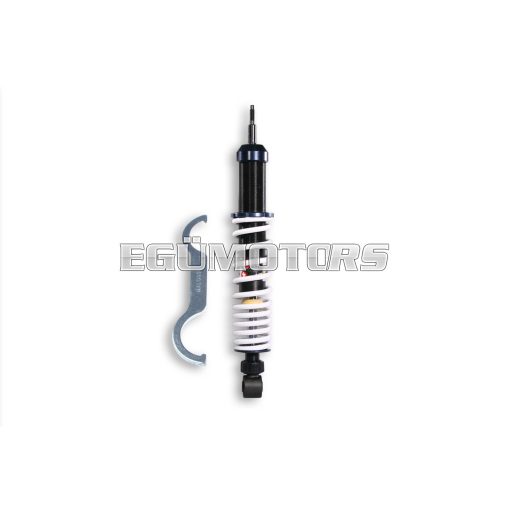

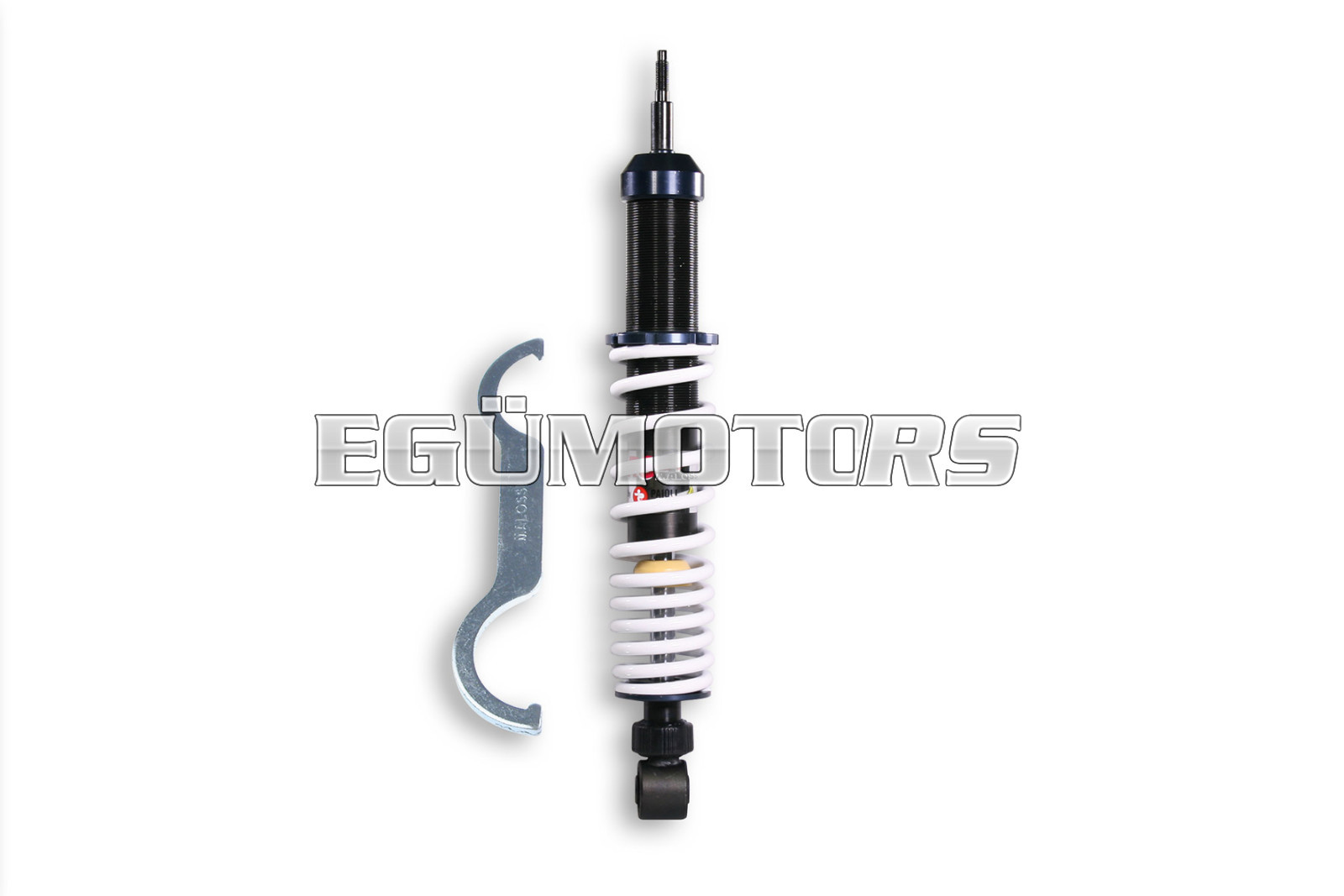

It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation.
- Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration.
- LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound).
- Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB).
- Polyester resin SEALTHANE grade 9345 scraper ring.
- 38NCD4 alloy steel shock absorber rod ø 14 mm, hardened and tempered with hard chrome deposit thickness 25/30 microns (superficial hardness of the untreated shaft HRC 55/60).
| Code |
| Inter-axis mm | Stroke mm |
| 46 7588 | rear | 267 | 42 |
| 46 7900 | front | 205 | 60 |
| 46 8308 | rear | 294 | 65 |
| 4611641 | rear | 410 | 85 |
| 4612962 | rear | 290 | 54 |
| 4613055 | rear | 307 | 60 |
| 4613598 | rear | 316 | 45 |
| 4614615 | front | 257 | 90 |
4615218 | rear | 336 | 86 |
4620074 | rear | 336 | 86 |
4617065 | rear | 360 | 70 |
4617076 | front | 275 | 58 |
| 4617558 | front | 227 | 75 |
| 4619983 | front | 225 | 60 |
Modellek:
- VESPA ELETTRICA 45 KM/H 2019-> (CB01E)
- VESPA Primavera 3V 125 ie 4T euro 3 2014->2015 (M811M)
- VESPA Primavera iGet 125 ie 4T euro 4 2016->2020
- VESPA Primavera iGet 125 ie 4T euro 5 2021->2023 (MD11M)
- VESPA Primavera 3V 150 ie 4T euro 3 2014->2015 (M812M)
- VESPA Primavera iGet 150 ie 4T euro 4 2016->2020
- VESPA Primavera iGet 150 ie 4T euro 5 2021->2023 (MD12M)
- VESPA Sprint 3V 125 ie 4T euro 3 2014->2015
- VESPA Sprint iGet 125 ie 4T euro 4 2016->2020 (MA13M)
- VESPA Sprint iGet 125 ie 4T euro 5 2021->2023 (MD11M)
- VESPA Sprint 3V 150 ie 4T euro 3 2014->
- VESPA Sprint iGet 150 ie 4T euro 4 2016->2020
- VESPA Sprint iGet 150 ie 4T euro 5 2021->2023
- VESPA Primavera iGet 125 ie 4T euro 5+ 2024-> (MD13M)
- VESPA Sprint S iGet 125 ie 4T euro 5+ 2024->
- VESPA Primavera iGet 150 ie 4T euro 5+ 2024-> (MD14M)
- VESPA Primavera S iGet 150 ie 4T euro 5+ 2025->
- VESPA Primavera RED iGet 150 ie 4T euro 5+ 2025->
- VESPA Primavera Tech iGet 150 ie 4T euro 5+ 2025->
- VESPA Primavera Batik iGet 150 ie 4T euro 5+ 2025->
- VESPA Primavera S iGet 125 ie 4T euro 5+ 2025->
- VESPA Primavera RED iGet 125 ie 4T euro 5+ 2025->
- VESPA Primavera Tech iGet 125 ie 4T euro 5+ 2025->
- VESPA Primavera Batik iGet 125 ie 4T euro 5+ 2025->
