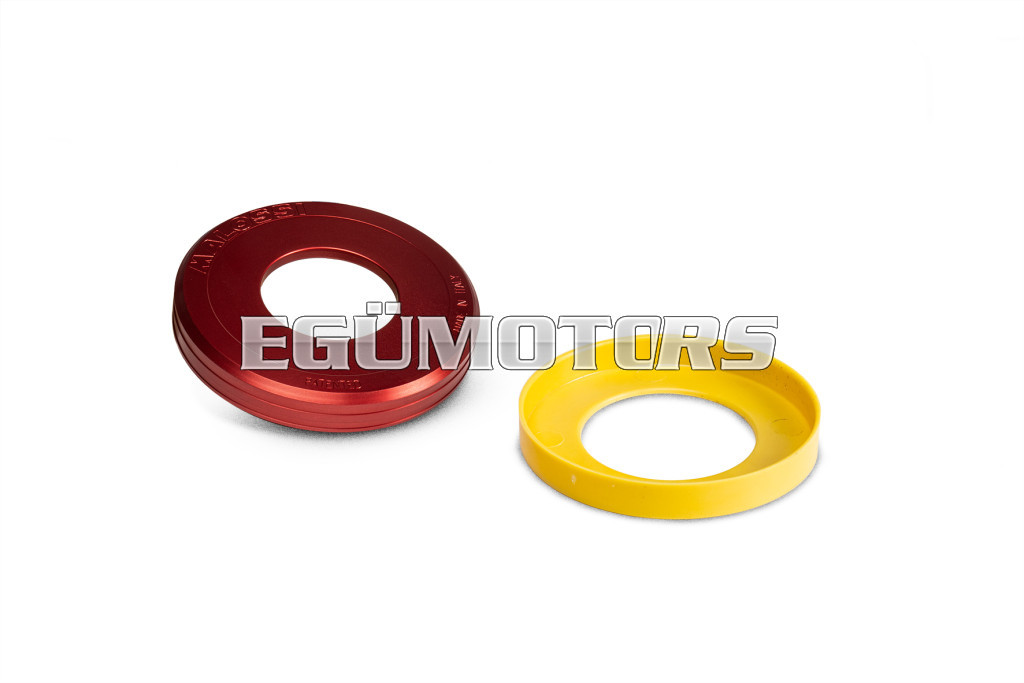

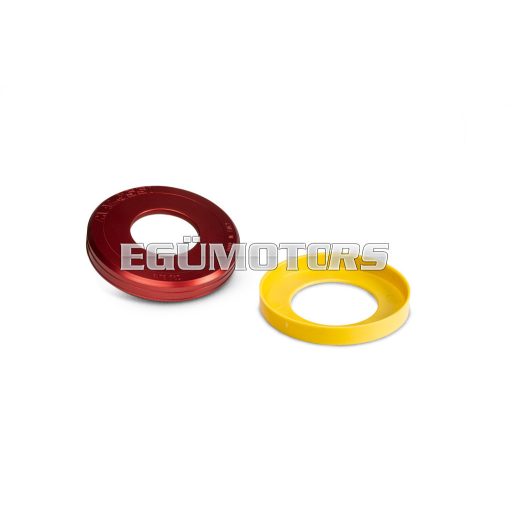

TORSION CONTROLLER
Antifriction fifth wheel for variator contrast spring
A secret from Malossi racing department
Light, perfect: a technology extract in its simplicity.
Design and formula of the materials are registered.
Abstract from of Malossi Engineering R&D department archives
CVT Transmission systems
Chapter : contrast spring.
Goal
Pull down vibrations and to make the system operation stable at any rpm and temperature.
Design path
We have considered both on theoretical and practical basis all the existing fifth wheel systems: balls, rollers and radial sliding fifth wheels of metal type. All the tests gave unsatisfactory results. We have made prototypes with alternative systems, metallic type, without any positive results. Only after exhausting laboratory and racetrack tests we have eventually come to Torsion Controller design.
Thesis
The above-mentioned component solves the following problems.
During gear curve range the bushing of the movable pulley (torque drive) slides into the driven pulley in axial way along fixed pulley hub, making a small rotation which gives a torsion to the contrast spring. Sometimes the spring loses its position while frictioning on the shoe-holder plate, metal against
metal; some others, the spring remains stuck in its position causing some accidentally different contrast forces.
Second problem : centrifugal forces caused at high rpm affect the spring which consequently buckled and starts to veer as to create big vibrations, very annoying for the driver as well as dangerous for the engine and, above all, making unsteady the gear curve.
Result
We approved the project with great success after strict tests at R&D department and on racetrack on all examined scooter models.
Modellek:
- KYMCO AK 550 ie 4T LC euro 4 2017->2020 (SAA1)
- KYMCO AK 550 ie 4T LC euro 5 2021-> (SBA1)
- YAMAHA T MAX 500 ie 4T LC 2004->2007
- YAMAHA T MAX 500 ie 4T LC 2008->2011
- YAMAHA T MAX 530 ie 4T LC 2012->2014 (J409E)
- YAMAHA T MAX 530 ie 4T LC 2015->2016 (J409E)
- YAMAHA T MAX 530 ie 4T LC euro 4 2017-> (J415E)
- YAMAHA T MAX 560 ie 4T LC euro 5 2020->2021 (J420E)
- YAMAHA T MAX 560 ie 4T LC euro 5 2022->2024
- YAMAHA T MAX (carb.) 500 4T LC 2001->2003
- YAMAHA T MAX DX 530 ie 4T LC euro 4 2017-> (J415E)
- YAMAHA T MAX SX 530 ie 4T LC euro 4 2017-> (J415E)
- YAMAHA T MAX Tech MAX 560 ie 4T LC euro 5 2020->2021 (J420E)
- YAMAHA T MAX Tech MAX 560 ie 4T LC euro 5 2022->2024
- KYMCO AK Premium 550 ie 4T LC euro 5 2023-> (SBA1B)
