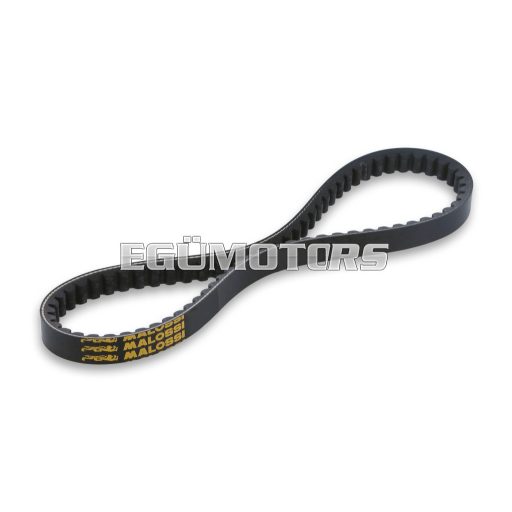

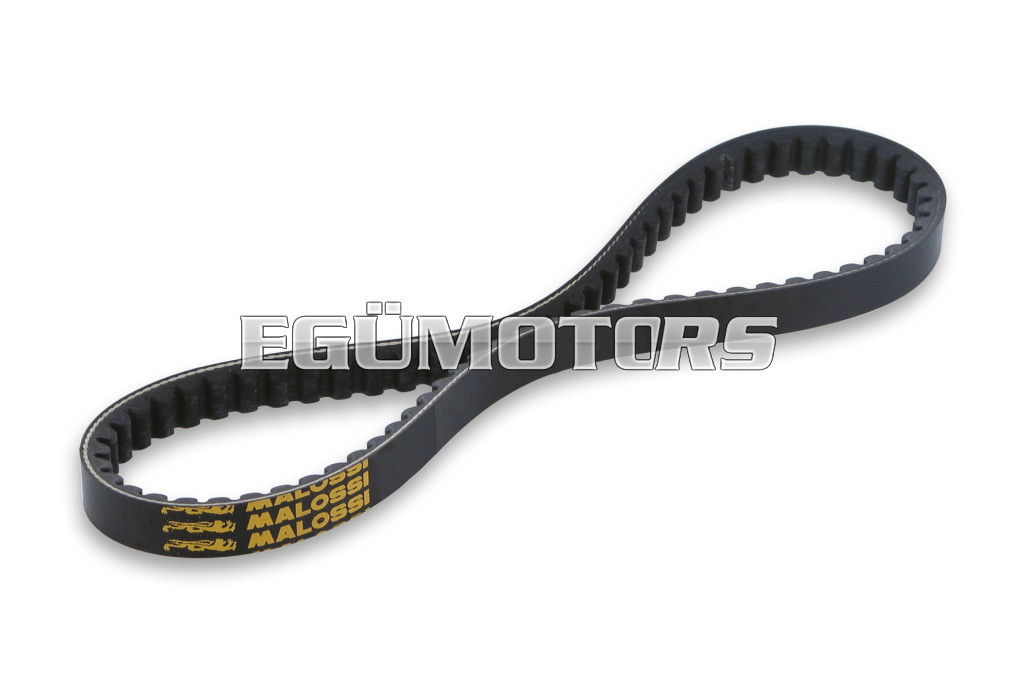

X Special Belt
Tourism use
X Special trapezoidal belts are the best choice to ensure maximum performance and reliability from your scooter.
They are produced with special mixtures to guarantee optimal resistance and drive; their forms have been developed to perfectly fit the surface of the automatic transmission elements.
X Special Belt is not only perfectly compatible with the original belt. but it offers all the advantages of a Malossi high-quality product.
| CODE | A
Width mm | B
Thickness mm | C
External size mm | D
Angle |
| 61 7224 | 10 | 8 | 927 | 36° |
| 61 7226 | 10 | 8 | 940 | 36° |
| 61 7227 | 13 | 6.5 | 978 | 34° |
| 61 7222 | 13 | 6.5 | 1089 | 34° |
| 61 7314 | 13 | 6.5 | 1143 | 34° |
| 61 7219 | 13 | 8 | 870 | 38° |
| 61 7223 | 13.4 | 6.5 | 1060 | 34° |
| 6112745 | 14.5 | 8 | 819 | 30° |
| 61 7220 | 15 | 8 | 747 | 30° |
| 61 7216 | 15 | 8 | 793 | 30° |
| 61 7233 | 15 | 8 | 853 | 32° |
| 61 7213 | 15.3 | 8 | 642 | 32° |
| 6119261 | 15.5 | 8.5 | 969 | 30° |
| 6119260 | 15.5 | 8.5 | 1049 | 30° |
| 6118940 | 15.5 | 8.5 | 1163 | 30° |
| 6118140 | 16 | 8 | 751 | 28° |
| 6111164 | 16 | 8 | 832 | 26° |
| 6112741 | 16.5 | 8 | 796 | 30° |
| 61 9832 | 17 | 8 | 802 | 30° |
| 61 9829 | 17.5 | 8 | 723 | 30° |
| 61 8396 | 18 | 8 | 703 | 32° |
| 6112735 | 18 | 8 | 769 | 32° |
| 6117248 | 18 | 8 | 798 | 30° |
| 61 9221 | 18 | 8 | 838 | 32° |
| 6113397 | 18 | 9.5 | 680 | 30° |
| 6116844 | 18.4 | 8 | 785 | 30° |
| 6111246 | 18.5 | 8 | 727 | 30° |
| 61 9830 | 18.5 | 8 | 834 | 30° |
| 6116748 | 18.5 | 8.5 | 794 | 30° |
| 6116889 | 18.7 | 8 | 810 | 30° |
| 6114127 | 22.3 | 10.5 | 924 | 30° |
| 6118634 | 22.6 | 10.6 | 845 | 30° |
| 6115676 | 22.7 | 10.5 | 931 | 28° |
| 6118987 | 24 | 10.6 | 952 | 30° |
| 6117244 | 25.5 | 10.5 | 902 | 31° |
DuPont™ and Kevlar® are trademarks or registered trademarks of E.I. du Pont de Nemours and Company.
