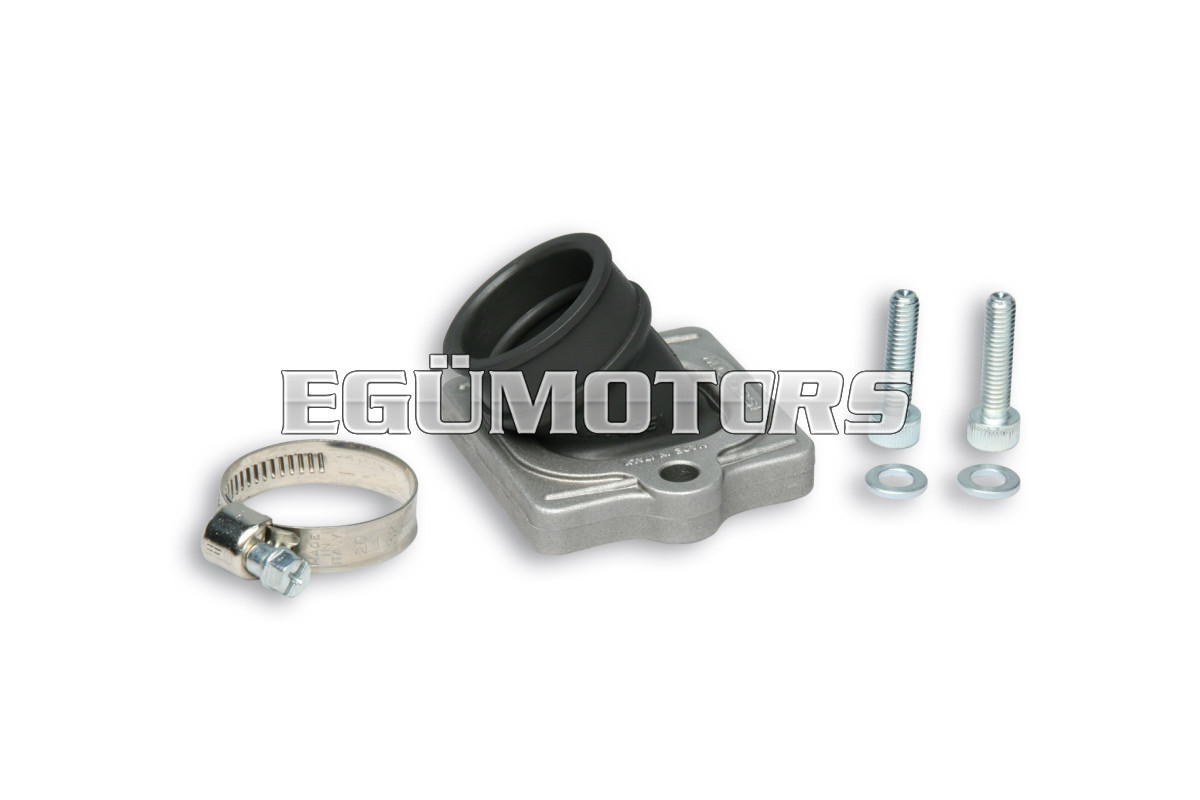

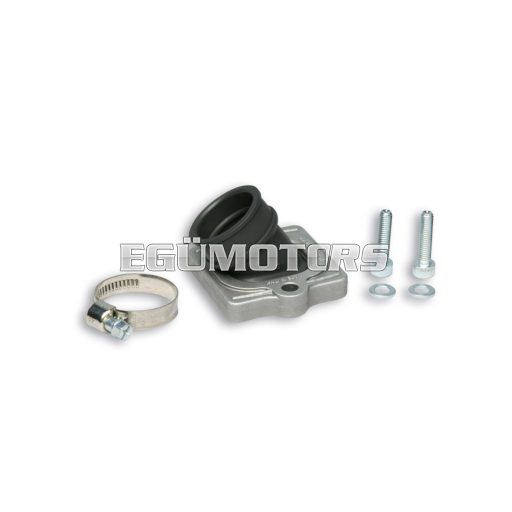

These new intake manifolds are supplied split up: the intake rubber can be rotated into the flange according to the specific requirements of the vehicle, in order to locate which is the best angle for the carburettor assembly.
|
for PIAGGIO engines |
for YAMAHA-MINARELLI engines |
| PIAGGIO | Material | Inter-axis
(mm) | Inter-axis
(fori) | Ø Manifolds | Ø Inlet | Total length | Carburettors applicationsi | Note |
| 2014520 | VITON | 52 | 6,7 | 22 | 24,5 | 29 | PHBG 15-21 | Can be rotated of 360° |
| 2014519 | VITON | 52 | 6,7 | 22 | 28 | 29 | PHBG 15-21 Racing
(linkage 28)
PHBL 22-25
PHVB 22 | Can be rotated of 360° |
| 2013802 | VITON | 52 | 6,7 | 30 | 35 | 29 | PHBH 26-30
VHST 26-30
VHSH 30 | Can be rotated of 360° |
| YAMAHA-MINARELLI | Material | Inter-axis
(mm) | Inter-axis
(fori) | Ø Manifolds | Ø Inlet | Total length | Carburettors applicationsi | Note |
| 2014524 | VITON | - | 6,7 | 22 | 24,5 | 33 | PHBG 15-21 | Can be rotated of 360° |
| 2014525 | VITON | - | 6,7 | 22 | 28 | 33 | PHVB 22
PHBL 22-25
PHBG 15-21 Racing
(linkage 28) | Can be rotated of 360° |
| 2013847 | VITON | - | 6,7 | 30 | 35 | 52 | PHBH 26-30
VHST 26-30
VHSH 30 | Can be rotated of 360° |
Modellek:
- APRILIA SCARABEO CLASSIC 50 2T euro 4 2018-> (CA91M) (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- APRILIA SCARABEO STREET 50 2T (PIAGGIO) (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- APRILIA SCARABEO STREET 50 2T euro 4 2018-> (CA91M) (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- APRILIA SPORTCITY ONE STREET 50 2T euro 2 (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- APRILIA SR (carb.) 50 2T LC 2004-> (PIAGGIO) (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- APRILIA SR R 50 2T LC euro 4 2018-> (PIAGGIO CA81M) (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- APRILIA SR MOTARD 50 2T euro 2 (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- APRILIA SR MOTARD 50 2T euro 4 2018-> (CA41M) (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- APRILIA SR R (carb.) 50 2T LC (PIAGGIO) (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- APRILIA SR Street 50 2T LC euro 2 (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- DERBI GP1 50 2T LC (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- DERBI GP1 OPEN 50 2T LC (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- DERBI GP1 REVOLUTION 50 2T LC (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- DERBI VARIANT Sport 50 2T (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- GILERA DNA 50 2T LC (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- GILERA EASY MOVING 50 2T (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- GILERA ICE 50 2T (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- GILERA RUNNER SP 50 2T LC <-2005 (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- GILERA RUNNER SP 50 2T LC 2006-> (C451M) (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- GILERA RUNNER 50 2T LC (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- GILERA STORM 50 2T (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- GILERA STALKER 50 2T (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- GILERA TYPHOON 50 2T (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- GILERA TYPHOON X 50 2T (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO NRG Power 50 2T LC euro 4 2018->2020 (CA71M) (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO NRG EXTREME 50 2T (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO NRG EXTREME 50 2T LC (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO FREE 50 2T (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO LIBERTY 50 2T (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO NRG MC2 50 2T LC <-1997 (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO NRG MC2 50 2T LC 1998-> (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO NRG 50 2T LC (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO NRG MC3 DT 50 2T (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO NRG MC3 DD 50 2T LC (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO NTT 50 2T LC (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO NRG Power DD 50 2T LC (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO NRG Power DT 50 2T (C453M) (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO QUARTZ 50 2T LC (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO SFERA RESTYLING 50 2T (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO TYPHOON 50 2T 2007->2010 (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO TYPHOON 50 2T euro 2 2011->2017 (C421M) (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO TYPHOON 50 2T euro 4 2018-> (CA41M) (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO ZIP Fast Rider 50 2T (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO ZIP 50 2T 2000-> (C25EM) (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO ZIP 50 2T <-1999 (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO ZIP SP 50 2T LC 2001-> (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- PIAGGIO ZIP SP 50 2T LC <-2000 (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
- VESPA ET2 50 2T <-1999 (Can be rotated of 360° - for PHBG 15-21 Racing (linkage 28))
