Super T-Max Malossi is proud to offer "Super T-Max," a completely new gamma of products for the most popular Yamaha Maxi-Scooter and like always Made In Italy!

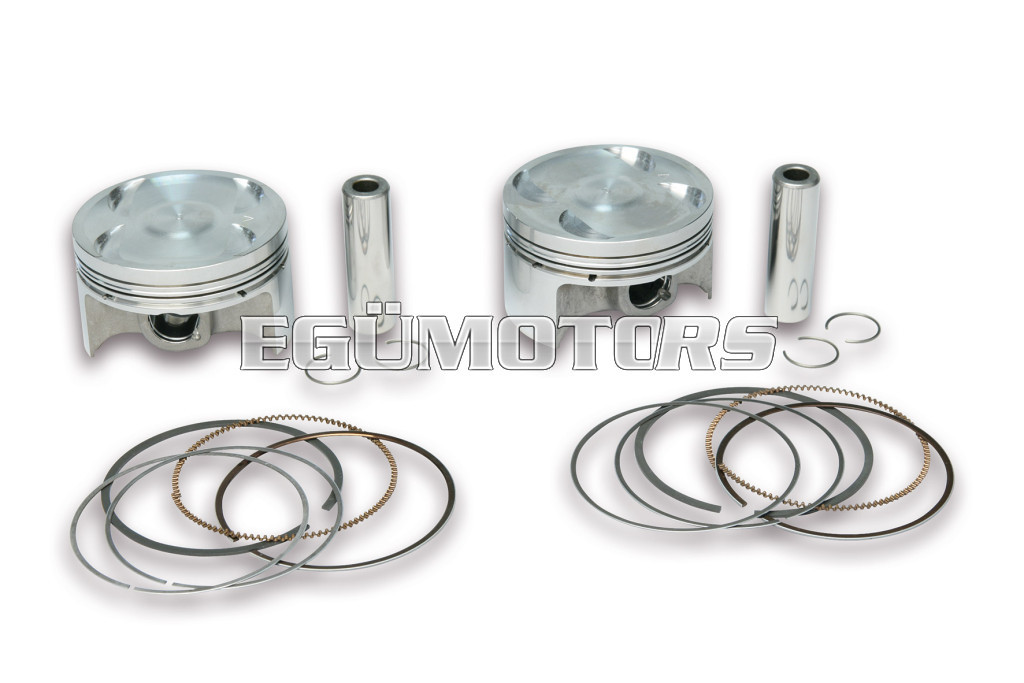

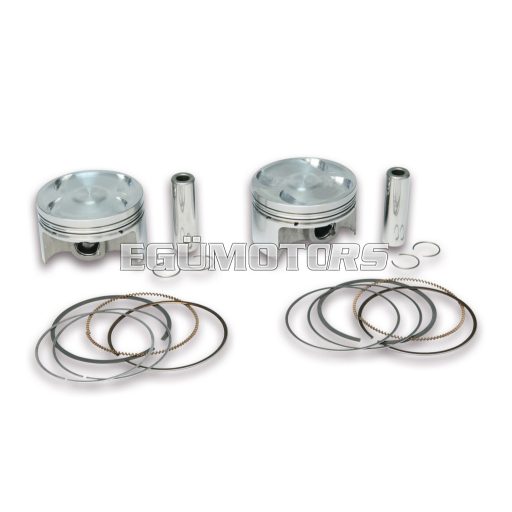

Ø 66 forged piston
spin Ø 15 with 3 piston rings
high compression for original cylinder
Forged Pistons: Special Al-Si-Cu alloy, hardened, shaped crown with valve reliefs, racing design, reinforced and lightened with constant wall thickness.
Piston Rings (3):
- 1st - Compression Ring: Chrome plated steel.
- 2nd - Intermediate Ring: Phosphate coated steel.
- 3rd - Oil Control Ring: 3-piece oil ring, (chrome plated steel rails, plus spring).
Two available piston sizes:
| Cylinder | Cylinder Sleeve Ø Original | Piston Ø Malossi | Piston ID Mark Malossi |
| Normal | 66.000 - 66.010 | 65.965 - 65.980 | 0 |
| Over-Sized | 66.020 - 66.030 | 65.985 - 66.000 | M |
The normal piston size is intended to replace the original piston without any need for cylinder modifi cations. (Verify that the cylinder is not damaged, ovalized or scored).
The over-sized piston is intended to be used with a modified cylinder sleeve, which has been honed to the dimensions indicated in the above table.
Modellek:
- YAMAHA T MAX 500 ie 4T LC 2004->2007
- YAMAHA T MAX 500 ie 4T LC 2008->2011
