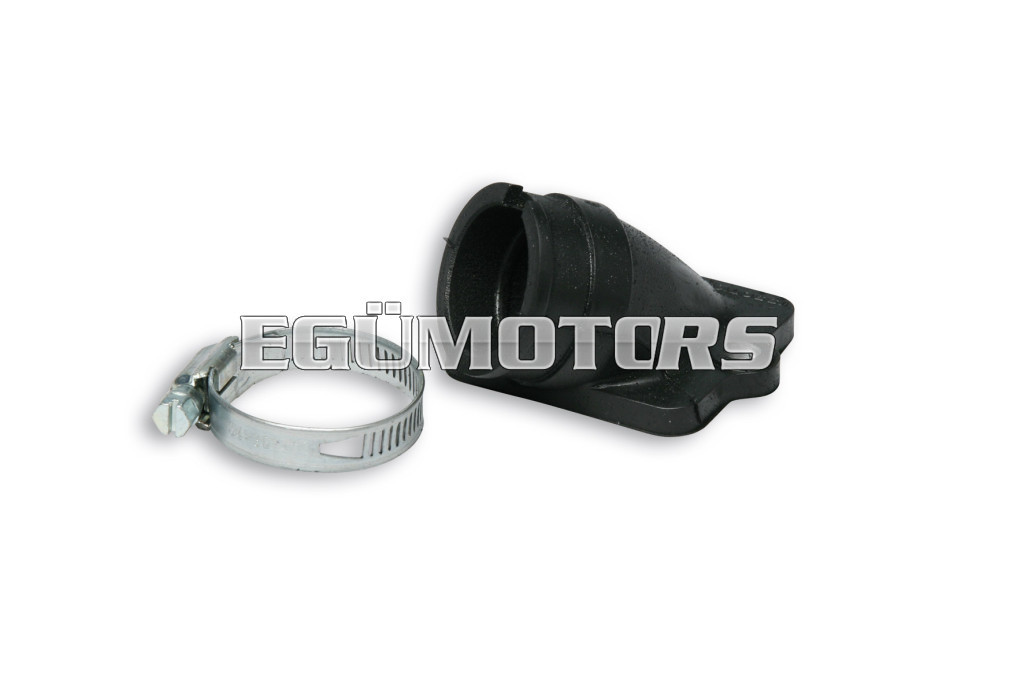

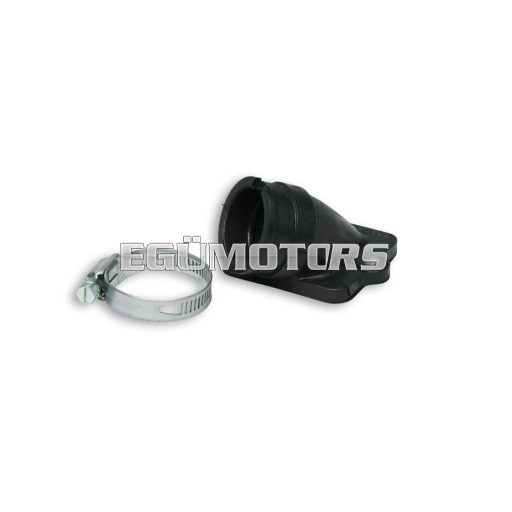

NBR tilted intake manifold Ø 22-28 length 26 for Piaggio - Gilera 2T 50 cc engines

INTAKE MANIFOLDS

Intake manifold conveys the air-fuel mixture to the engine by means of reed valve.

The total efficiency of an engine is calculated as the product of various partial efficiencies, such as:
- volumetric efficiency
- thermodynamic efficiency
- mechanical efficiency

Volumetric efficiency is the ratio between the quantity of fuel that can enter the combustion chamber and the displacement of the engine.

One of the main factors affecting volumetric efficiency is loss due to friction that the fluid encounters (air-fuel mix) when feeding from the air filter to the combustion chamber. Therefore, one of the components that greatly influences this loss is the intake manifold, since all of the mix has to travel through it with the minimum possible loss . For this reason, sudden increases in section and corners along the mix path must absolutely be avoided.
The intake manifold also acts as an accumulation tank for the fresh load , since the mix, travelling at a certain speed, requires time to stop when the reed valve closes. Therefore, mix collects in the manifold and exerts pressure against the reeds. For this reason, each manifold has a well-defined range of revolutions within which it provided maximum efficiency (tuned manifold).
In addition, the manifold supports the carburettor by connecting it to the engine casing or to the cylinder , damping vibrations between casing and carburettor and preventing emulsion of gas and air in the carburettor tank.
This apparently simple component therefore requires a great deal of study in order to take full advantage of all of its qualities.
Malossi engineers have achieved this to perfection. Malossi, with decades of experience in engine fuelling systems, has created a new line of manifolds in rubber and aluminium alloy for the new generation of scooters, and has tested and developed the line on roads and race tracks.
Malossi rubber manifolds feature a composite structure. Their construction begins with an aluminium insert that is encased in a special plastic material that is impervious to oils and fuels, guaranteeing increased rigidity at the point of attachment to the casing and greater flexibility of the manifold body.

Modellek:

• APRILIA MOJITO CUSTOM 50 2T (For original air box filter)
• APRILIA SCARABEO CLASSIC 50 2T euro 4 2018-> (CA91M) (For original air box filter)
• APRILIA SCARABEO STREET 50 2T (PIAGGIO) (For original air box filter)
• APRILIA SCARABEO STREET 50 2T euro 4 2018-> (CA91M) (For original air box filter)
• APRILIA SPORTCITY ONE STREET 50 2T euro 2 (For original air box filter)
• APRILIA SR (carb.) 50 2T LC 2004-> (PIAGGIO) (For original air box filter)
• APRILIA SR R 50 2T LC euro 4 2018-> (PIAGGIO CA81M) (For original air box filter)
• APRILIA SR MOTARD 50 2T euro 2 (For original air box filter)
• APRILIA SR MOTARD 50 2T euro 4 2018-> (CA41M) (For original air box filter)
• APRILIA SR R (carb.) 50 2T LC (PIAGGIO) (For original air box filter)
• APRILIA SR Street 50 2T LC euro 2 (For original air box filter)
• DERBI ATLANTIS - BULLET 50 2T 2003-> (For original air box filter)
• DERBI GP1 50 2T LC (For original air box filter)
• DERBI GP1 OPEN 50 2T LC (For original air box filter)
• DERBI GP1 REVOLUTION 50 2T LC (For original air box filter)
• DERBI VARIANT Sport 50 2T (For original air box filter)
• GILERA DNA 50 2T LC (For original air box filter)
• GILERA EASY MOVING 50 2T (For original air box filter)
• GILERA ICE 50 2T (For original air box filter)
• GILERA RUNNER SP 50 2T LC <-2005 (For original air box filter)
• GILERA RUNNER SP 50 2T LC 2006-> (C451M) (For original air box filter)
• GILERA RUNNER 50 2T LC (For original air box filter)
• GILERA STORM 50 2T (For original air box filter)
• GILERA STALKER 50 2T (For original air box filter)
• GILERA TYPHOON 50 2T (For original air box filter)
• GILERA TYPHOON X 50 2T (For original air box filter)
• ITALJET JET SET 50 2T (For original air box filter)
• ITALJET TORPEDO 50 2T (For original air box filter)
• PIAGGIO NRG Power 50 2T LC euro 4 2018->2020 (CA71M) (For original air box filter)
• PIAGGIO DIESIS 50 2T (For original air box filter)
• PIAGGIO NRG EXTREME 50 2T (For original air box filter)
• PIAGGIO NRG EXTREME 50 2T LC (For original air box filter)
• PIAGGIO FLY 50 2T (For original air box filter)
• PIAGGIO FREE 50 2T (For original air box filter)
• PIAGGIO LIBERTY 50 2T (For original air box filter)
• PIAGGIO NRG MC2 50 2T LC <-1997 (For original air box filter)
• PIAGGIO NRG MC2 50 2T LC 1998-> (For original air box filter)
• PIAGGIO NRG 50 2T LC (For original air box filter)
• PIAGGIO NRG MC3 DT 50 2T (For original air box filter)
• PIAGGIO NRG MC3 DD 50 2T LC (For original air box filter)
• PIAGGIO NTT 50 2T LC (For original air box filter)
• PIAGGIO NRG Power DD 50 2T LC (For original air box filter)
• PIAGGIO NRG Power DT 50 2T (C453M) (For original air box filter)
• PIAGGIO QUARTZ 50 2T LC (For original air box filter)
• PIAGGIO SFERA RESTYLING 50 2T (For original air box filter)
• PIAGGIO SFERA 50 2T (For original air box filter)
• PIAGGIO SFERA 75 2T (For original air box filter)
• PIAGGIO TYPHOON 50 2T 2007->2010 (For original air box filter)
• PIAGGIO TYPHOON 50 2T euro 2 2011->2017 (C421M) (For original air box filter)
• PIAGGIO TYPHOON 50 2T euro 4 2018-> (CA41M) (For original air box filter)
• PIAGGIO ZIP Fast Rider 50 2T (For original air box filter)
• PIAGGIO ZIP 50 2T 2000-> (C25EM) (For original air box filter)
• PIAGGIO ZIP 50 2T <-1999 (For original air box filter)
• PIAGGIO ZIP SP 50 2T LC 2001-> (For original air box filter)
• PIAGGIO ZIP SP 50 2T LC <-2000 (For original air box filter)
• VESPA ET2 50 2T 2000-> (For original air box filter)
• VESPA ET2 50 2T <-1999 (For original air box filter)
• VESPA LX 50 2T (For original air box filter)
• VESPA Primavera 50 2T euro 2 (C533M) (For original air box filter)
• VESPA S 50 2T euro 2 (C381M) (For original air box filter)
• VESPA Sprint 50 2T euro 2 (For original air box filter)
