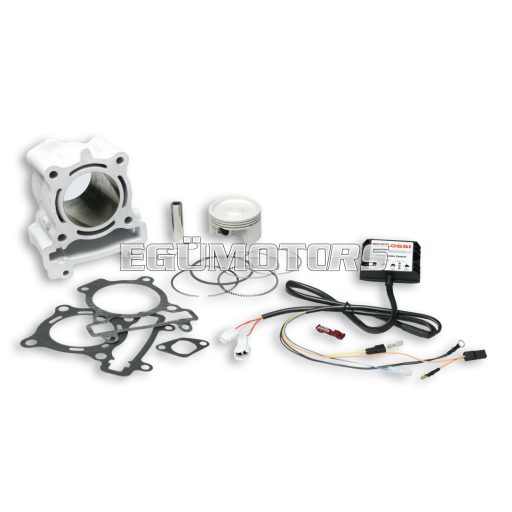

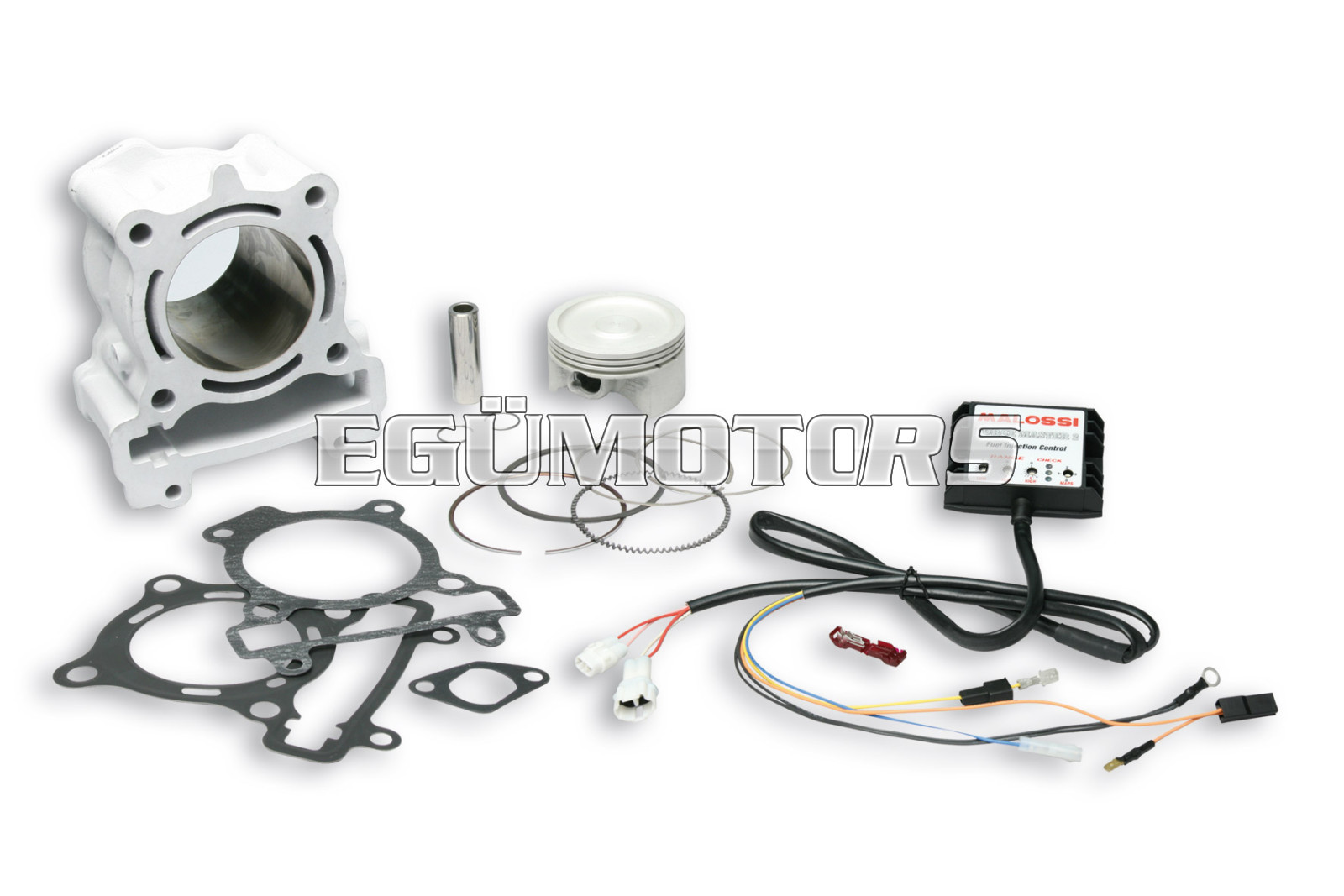

Force Master is renewed!
Besides its improved fuel curves, efforts from Malossi's technical staff resulted with a rev limiter increase of 1,000/1,500 RPM depending on the vehicle, making Force Master 2 an even higher performing ECU!
Force Master 2 allows to change the injection in order to fit perfectly the new Malossi 4-stroke cylinder kit.
This CDI has been scheduled with 4 different maps so as to be coupled perfectly with your vehicle whatever its setting is!
TECHNICAL FEATURES
Cylinder
- Bore: Ø 63 mm
- Stroke: 58.6 mm
- Displacement: 182.58 cc
- Compression ratio: 10.6:1.
- Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances
- Machining: on machine tools with high precision numerical control
- Cylinder-piston connection with an allowance of 0.05 mm
- Recalculated and upgraded heat exchange surfaces
Piston
- Ultra compact with 3 rings
- Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces
- Machining on machine tools with numerical control
- Lightened and reinforced
- Upgraded heat exchange surfaces
Piston rings
- Special rings with high sliding ease and very high mechanical resistance
- I° ring compression in nitrided and chromium steel
- II° special cast iron ring
- Three - piece scraper ring made of chromium-plated special steel alloy.
CDI
- Carburation adjusting
- ± 20% at min/medium/max
- RPM limiter : + 1000 RPM
- 4 different maps
- curve 0 : Malossi Ø 63 cylinder, Force Master 2, original exhaust system
- curve 1 : Malossi Ø 63 cylinder, Force Master 2, Power Cam, Racing exhaust system
- curve 2 : Malossi Ø 63 cylinder, Force Master 2, Power Cam, original exhaust system
- curve 3 : Malossi Ø 63 cylinder, Force Master 2, Racing exhaust system
Modellek:
- YAMAHA 135 ie 4T LC 2011-> (T135)
- YAMAHA CRYPTON X 4V 135 ie 4T LC 2011-> (T135)
- YAMAHA EXCITER 135 ie 4T LC 2011-> (T135)
- YAMAHA JUPITER MX 135 ie 4T LC 2011-> (T135)
- YAMAHA SNIPER 135 ie 4T LC 2011-> (T135)
- YAMAHA SPARK 135 ie 4T LC 2011-> (T135)
