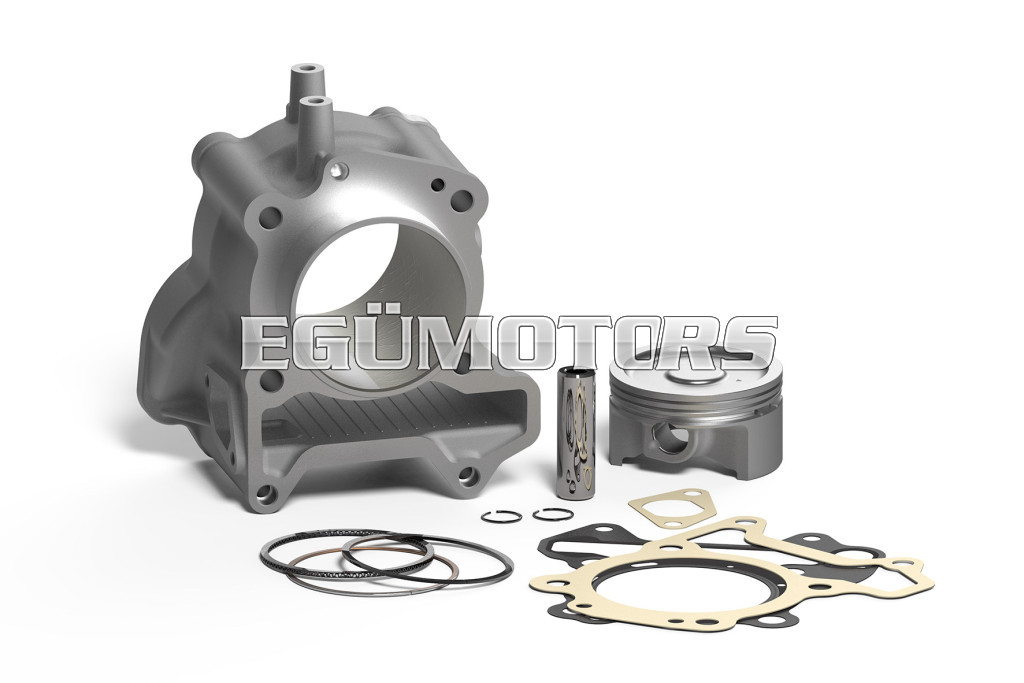

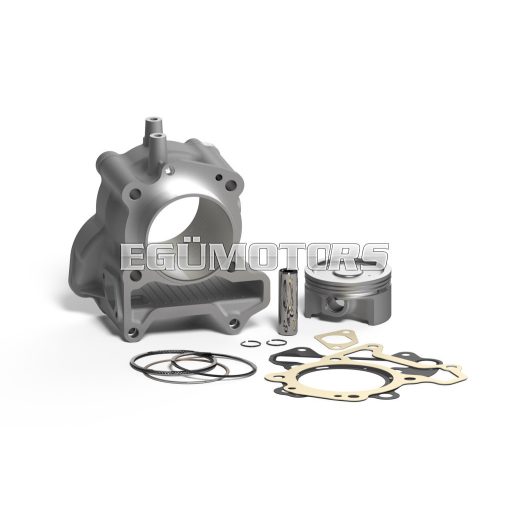

TECHNICAL FEATURES
Cylinder
- Bore : Ø 63 mm
- Stroke : 58.7 mm
- Displacement : 183 cc
- Compression ratio : 11.48
- Material : primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances
- Machining: on machine tools with high precision numerical control
- Cylinder-piston connection with an allowance of 0.05 mm
- Recalculated and upgraded heat exchange surfaces
Piston
- Ultra compact with 3 rings
- Material : special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces
- Machining on machine tools with numerical control
- Lightened and reinforced
- Upgraded heat exchange surfaces
Piston rings
- Special rings with high sliding ease and very high mechanical resistance
- I° ring compression in nitrided and chromium steel
- II° special cast iron ring
- Three piece scraper ring made of chromium-plated special steel alloy
To be installed exclusively with Force Master control unit 5517738
PIAGGIO MEDLEY 125 ie 4T LC euro 4 2016->2019 (MA01M)
VESPA GTS 125 ie 4T LC euro 4 2017->2020
VESPA GTS Super 125 ie 4T LC euro 4 2017->2020
To be installed exclusively with Force Master control unit 5518182
PIAGGIO MEDLEY 150 ie 4T LC euro 4 2016->2019
VESPA GTS 150 ie 4T LC euro 4 2017->2020
VESPA GTS Super 150 ie 4T LC euro 4 2017->2020
To be installed exclusively with Force Master control unit 5518844
PIAGGIO MEDLEY 125 ie 4T LC euro 4 2020 (MB01M)
PIAGGIO MEDLEY 150 ie 4T LC euro 4 2020
PIAGGIO MEDLEY S 150 ie 4T LC euro 4 2020
To be installed exclusively with Force Master control unit 5519463
APRILIA SR GT 125 ie 4T LC euro 5 2022-> (MD51M)
APRILIA SR GT Sport 125 ie 4T LC euro 5 2022-> (MD51M)
PIAGGIO MEDLEY 125 ie 4T LC euro 5 2021-> (MD01M)
PIAGGIO MEDLEY 150 ie 4T LC euro 5 2021-> (MD02M)
PIAGGIO MEDLEY S 125 ie 4T LC euro 5 2021-> (MD01M)
PIAGGIO MEDLEY S 150 ie 4T LC euro 5 2021-> (MD02M)
VESPA GTS 125 ie 4T LC euro 5 2021->
VESPA GTS 150 ie 4T LC euro 5 2021->
VESPA GTS Super 125 ie 4T LC euro 5 2021->
VESPA GTS Super 150 ie 4T LC euro 5 2021->
Modellek:
- APRILIA SR GT 125 ie 4T LC euro 5 2022->2024 (MD51M) (ATTENTION : To be installed exclusively with Force Master control unit art. 5519463 - For proper fitting to be installed exclusively with CHAIN TENSIONER art. 1819744B)
- APRILIA SR GT Sport 125 ie 4T LC euro 5 2022->2024 (MD51M) (ATTENTION : To be installed exclusively with Force Master control unit art. 5519463 - For proper fitting to be installed exclusively with CHAIN TENSIONER art. 1819744B)
- PIAGGIO MEDLEY 125 ie 4T LC euro 4 2016->2019 (MA01M) (ATTENTION : To be installed exclusively with Force Master control unit art. 5517738)
- PIAGGIO MEDLEY 125 ie 4T LC euro 4 2020-> (MB01M) (ATTENTION : To be installed exclusively with Force Master control unit art. 5518844)
- PIAGGIO MEDLEY 125 ie 4T LC euro 5 2021->2024 (MD01M) (ATTENTION : To be installed exclusively with Force Master control unit art. 5519463 - For proper fitting to be installed exclusively with CHAIN TENSIONER art. 1819744B)
- PIAGGIO MEDLEY 150 ie 4T LC euro 4 2016->2019 (ATTENTION : To be installed exclusively with Force Master control unit art. 5518182)
- PIAGGIO MEDLEY 150 ie 4T LC euro 4 2020-> (ATTENTION : To be installed exclusively with Force Master control unit art. 5518844)
- PIAGGIO MEDLEY 150 ie 4T LC euro 5 2021->2024 (MD02M) (ATTENTION : To be installed exclusively with Force Master control unit art. 5519463 - For proper fitting to be installed exclusively with CHAIN TENSIONER art. 1819744B)
- PIAGGIO MEDLEY S 125 ie 4T LC euro 4 2020-> (MB01M) (ATTENTION : To be installed exclusively with Force Master control unit art. 5518844)
- PIAGGIO MEDLEY S 125 ie 4T LC euro 5 2021->2024 (MD01M) (ATTENTION : To be installed exclusively with Force Master control unit art. 5519463 - For proper fitting to be installed exclusively with CHAIN TENSIONER art. 1819744B)
- PIAGGIO MEDLEY S 150 ie 4T LC euro 4 2020-> (ATTENTION : To be installed exclusively with Force Master control unit art. 5518844)
- PIAGGIO MEDLEY S 150 ie 4T LC euro 5 2021->2024 (MD02M) (ATTENTION : To be installed exclusively with Force Master control unit art. 5519463 - For proper fitting to be installed exclusively with CHAIN TENSIONER art. 1819744B)
- VESPA GTS Super 125 ie 4T LC euro 4 2017->2020 (ATTENTION : To be installed exclusively with Force Master control unit art. 5517738)
- VESPA GTS Super 125 ie 4T LC euro 5 2021->2022 (ATTENTION : To be installed exclusively with Force Master control unit art. 5519463 - For proper fitting to be installed exclusively with CHAIN TENSIONER art. 1819744B)
- VESPA GTS Super 150 ie 4T LC euro 4 2017->2020 (ATTENTION : To be installed exclusively with Force Master control unit art. 5518182)
- VESPA GTS Super 150 ie 4T LC euro 5 2021->2022 (ATTENTION : To be installed exclusively with Force Master control unit art. 5519463 - For proper fitting to be installed exclusively with CHAIN TENSIONER art. 1819744B)
- VESPA GTS 125 ie 4T LC euro 4 2017->2020 (ATTENTION : To be installed exclusively with Force Master control unit art. 5517738)
- VESPA GTS 125 ie 4T LC euro 5 2021->2022 (ATTENTION : To be installed exclusively with Force Master control unit art. 5519463 - For proper fitting to be installed exclusively with CHAIN TENSIONER art. 1819744B)
- VESPA GTS 150 ie 4T LC euro 4 2017->2020 (ATTENTION : To be installed exclusively with Force Master control unit art. 5518182)
- VESPA GTS 150 ie 4T LC euro 5 2021-> (ATTENTION : To be installed exclusively with Force Master control unit art. 5519463 - For proper fitting to be installed exclusively with CHAIN TENSIONER art. 1819744B)
- VESPA GTS Super 125 ie 4T LC euro 5 2023-> (ATTENTION : To be installed exclusively with Force Master control unit art. 5519463 - For proper fitting to be installed exclusively with CHAIN TENSIONER art. 1819744B)
- VESPA GTS 125 ie 4T LC euro 5 2023-> (ATTENTION : To be installed exclusively with Force Master control unit art. 5519463 - For proper fitting to be installed exclusively with CHAIN TENSIONER art. 1819744B)
- VESPA GTS Super Sport 125 ie 4T LC euro 5 2023-> (ATTENTION : To be installed exclusively with Force Master control unit art. 5519463 - For proper fitting to be installed exclusively with CHAIN TENSIONER art. 1819744B)
- VESPA GTS Super Tech 125 ie 4T LC euro 5 2023-> (ATTENTION : To be installed exclusively with Force Master control unit art. 5519463 - For proper fitting to be installed exclusively with CHAIN TENSIONER art. 1819744B)
